CIS-PMTL-LW01

• Intel® Core™ Ultra Processor (Serials 1/2) Ultra 5 125U, 125H
• 2 x DDR5 5600 MHz SO-DIMM, Up to 96GB
• 4x RJ45
• 1x DP 1.2, 1x HDMI 1.4, 1x USB-C Supports DP++
• 3x USB 3.2 (Gen2)
• 1x USB-C Supports USB 3.2 (Gen2)
• 2x USB 2.0 pin header
• 12~24V DC, DIN-Rail
• 1x OS Recovery

选择产品资料

下载

系统 System
处理器 Processor	Intel® Core™ Ultra Processor (Serials 1/2) Ultra 5 125U,125H
内存 Memory	2x DDR5 5600 MHz SO-DIMM, Up to 96GB
BIOS	AMI 256Mbit SPI Flash
图形 Graphics	Intel® Integrated Graphics
操作系统 OS	Windows10/11 64bit, Linux
看门狗定时器 Watchdog Timer	System reset, programmable 255 levels timer interval, from 1~255 sec/min

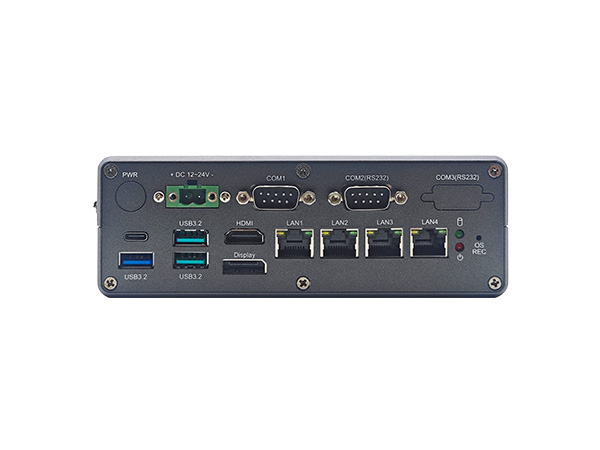

外部接口 External I/O
网口 Ethernet	4x RJ45: LAN1: Intel® I226-V GbE (10/100/1000 Mbps) LAN2~4: Intel® I210-AT GbE (10/100/1000 Mbps)
显示 Display	1x HDMI: Up to 4096 x 2304@30Hz 1x DP++: Up to 4096 x 2304@60Hz 1x USB-C: Supports DP++, Up to 5120 x 3200@60Hz
音频 Audio	/
串口 COM	1x COM (RS232/422/485 Default RS232) 1x COM (RS232)
USB	3x USB3.2 (Gen2) 1x USB-C Supports USB3.2 (Gen2)
按钮 Button	1x Power button
OS Recovery	1x OS Recovery button
指示灯 LED	1x Power LED 1x HDD LED

内部接口 Internal I/O
扩展接口 Expansion Slot	1x M.2 2280 M Key (SATA 3.0 or NVMe x4） 1x M.2 2230 E Key (PCIe x1+USB 2.0) 1x M.2 3052 B Key (PCIe x1+USB 2.0 or USB 3.1)
COM	2x COM (RS232) COM3&4 TX RX GND
USB	2x USB 2.0 pin header
SATA	1x SATA 3.0 + SATA power
GPIO	1x 8bit programmable GPIO
SIM	1x SIM Card Slot
ATX/AT jumper	1x ATX/AT jumper

防护 Protection
电源输入 Power Input	12~ 24V DC
接口 Interface	凤凰接头 Phoenix Slot 2Pin

环境 Environmental
操作温度 OperatingTemp.	15W 无风扇/28W~45W 有风扇: -10℃~40℃
存储温度 Storage Temp.	-40℃ ~ 60℃
操作湿度 Operating Relative Humidity	60℃ 5%~95%RH （SSD）
存储湿度 Storage Elative Humidity	60℃ 5%~95%RH, Non-Condensing
随机振动 Random Vibration	5~500Hz, 2Grms（SSD）operation
正弦振动 Sine Vibration	5~500Hz, 2G Non-operation
机械冲击 Shock	Operation: 10G@11ms;Non-operation: 20G@11ms

机构 Mechanical
外观 Housing	Aluminum Alloy
安装方式 Mounting	导轨式（DIN-Rail）
尺寸 Dimension	含桌面式支架（Includina Desk-Mount bracket）：175 x 115 x 65mm 不含桌面式支架（Excludina Desk-Mount bracket）：160 x 115 x 55mm

认证 Certification
安规认证 Safety Certification	CCC

销售型号 Sales Model
销售型号 Sales Model	CIS-P25U-LW01 CIS-P25H-FW01 CIS-P25U-FW01
