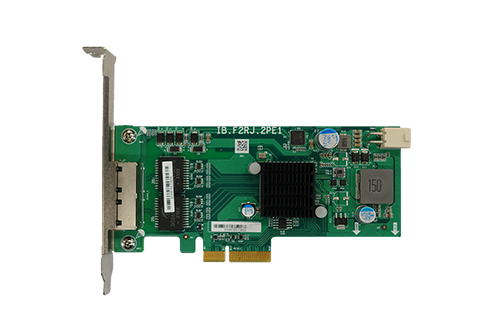

型号
基础信息

CIB-4LAN-210D

总线接口

PCI Express x4, PCIe(Gen2)

网络芯片

Intel® I210-AT, 支持 IEEE 1588

物理接口

4 x RJ45

速度

10/100/1000 Mbps

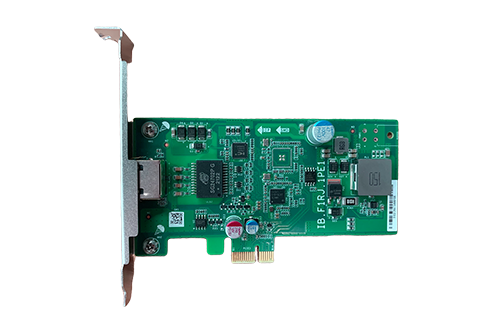

CAN卡(EB.FCAN)

·Compliant with PCI Express 1.1

·Meet the Requirements of the ISO 11898- 1

·CAN bus 2.0B backward compatible with 2.0A

·Support baud rate 10/20/50/100/125/250/500/800/1000K

·Support CAN message acceptance filter

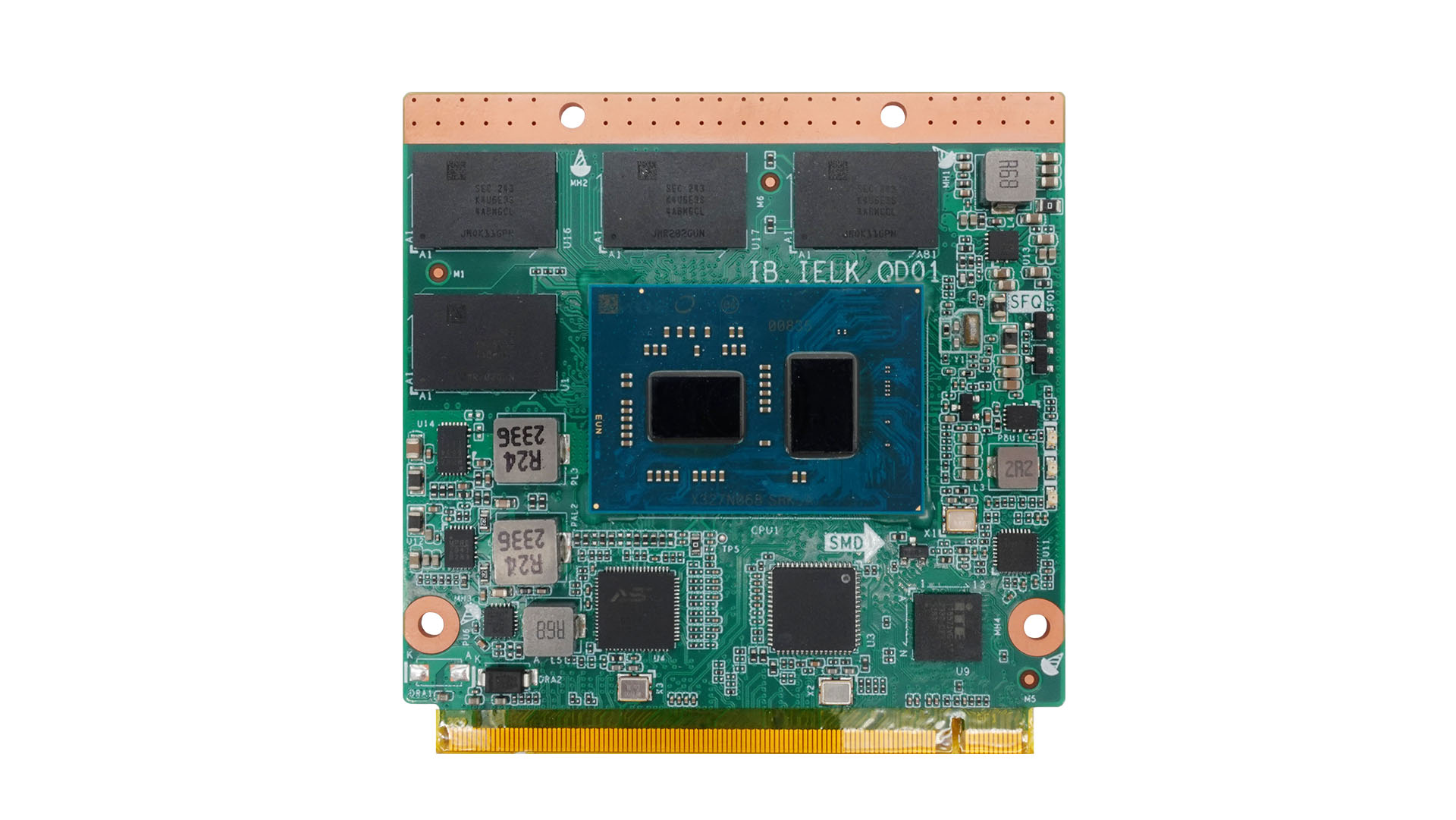

CIB-IELK-QD01

处理器

Intel® Elkhart Lake J6412 CPU (2.00 GHz)

内存

LPDDR4-2400, MAX to 16GB

存储

eMMC, 4GB to 64GB

操作系统

Win 10-64bit; Linux

USB

USB 3.0*2, USB 2.0*4

CIB-IH61-XA01

处理器

Intel® 12th / 13th Generation Core™ /Pentium®/Celeron® LGA 1700 Socket Processors with TDP up to 125W

内存

DDR4 3200MHz 288-pin DIMM x 2, Max to 64GB(32GB per DIMM)

操作系统

Win 10-64bit; Linux

USB

4 x USB 3.2(Gen 1), 2 x USB 2.0
2 x Vertical USB 2.0 Type-A, 2 x USB 2.0(Pin Header )

CIB-IW68-XA01

处理器

Intel® 12th / 13th Generation Core™ /Pentium®/Celeron® LGA 1700 Socket Processors with TDP up to 125W

内存

DDR5 4800/5600MHz 288-pin DIMM x4, Max to 128GB(32GB per DIMM)

操作系统

Win 10-64bit; Linux

USB

2 x USB 3.2(Gen 2), 6 x USB 3.2(Gen 1)
2 x Vertical USB 2.0 Type-A, 2 x USB 3.2 Gen1(Pin Header)
4 x USB 2.0(Pin Header)

CIB-ITLU-EC01

处理器

Intel® Core i3-1115G4/i5-1135G7/i7-1165G7
i3-1115GRE/i5-1145GRE/i7-1185GRE/6305E

网口

1 x Intel® I226-V

显示

1 x LVDS(Co-lay eDP 4096 x 2304@60Hz)
3 x DDI support Configurable HDMI/DispalyPort

扩展接口

1 x PCIe x 4(Gen4)
5 x PCIe x 1(Gen3)

CIB-IH11-MA01

处理器

6th/7th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 95W

内存

Dual Channel(Non-ECC)DDR4 2133/2400(Intel 7th CPU support)MHz
288-pin DIMM x2,Max to 32GB (16GB per DIMM)

操作系统

支持 Windows 7 32/64bit;Windows 10 64bit; Linux

接口

1 x PCIe x16(Gen3),1 x PCIe x4(Gen2),2 x PCI

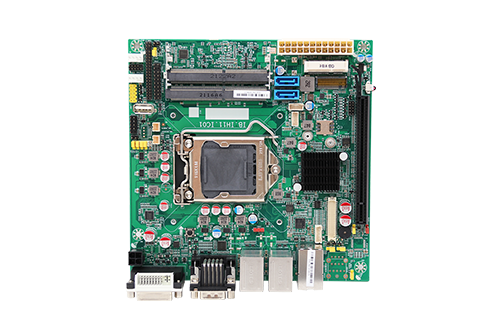

CIB-IH11-IC01

处理器

6th/7th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 65W

内存

Dual Channel(Non-ECC)DDR4 1866/2133/2400(7代CPU) MHz 260-pin SO-DIMM x2,Max to 32GB (16GB per DIMM)

操作系统

支持Windows 7 32/64bit;Windows 10 64bit; Linux
Note: 7th Gen CPU SKU ONLY support Windows 10 64-bit &
Ubuntu 16.04
扩展接口
1 x PCIe x16(Gen3)

CIB-IQ47-MA01

处理器Processor

10th/11th Generation Intel® Core™ /Pentium®/Celeron® LGA 1200 Socket Processors with TDP up to 125W

芯片组 chipset

Intel® Q470 Chipset

内存
Memory

DDR4 2400/2666/2933 MHz 288-pin DIMM x4
Max to 128GB (32GB per DIMM)

I/O接口

4xRJ45,1x HDMI,1x DP++,1x VGA,1x COM,1x Line out+1xMic,4x USB
