Industrial PC

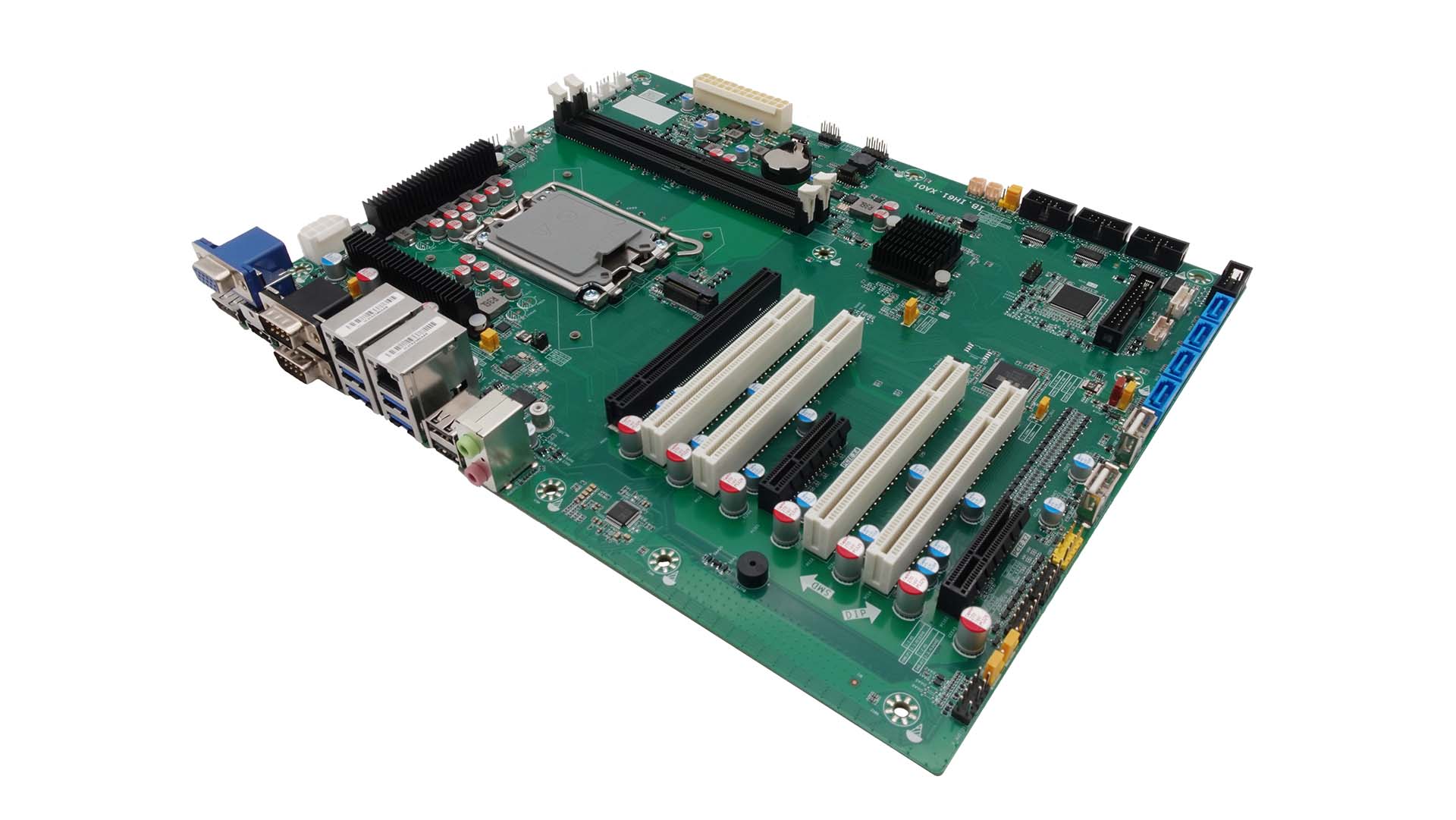

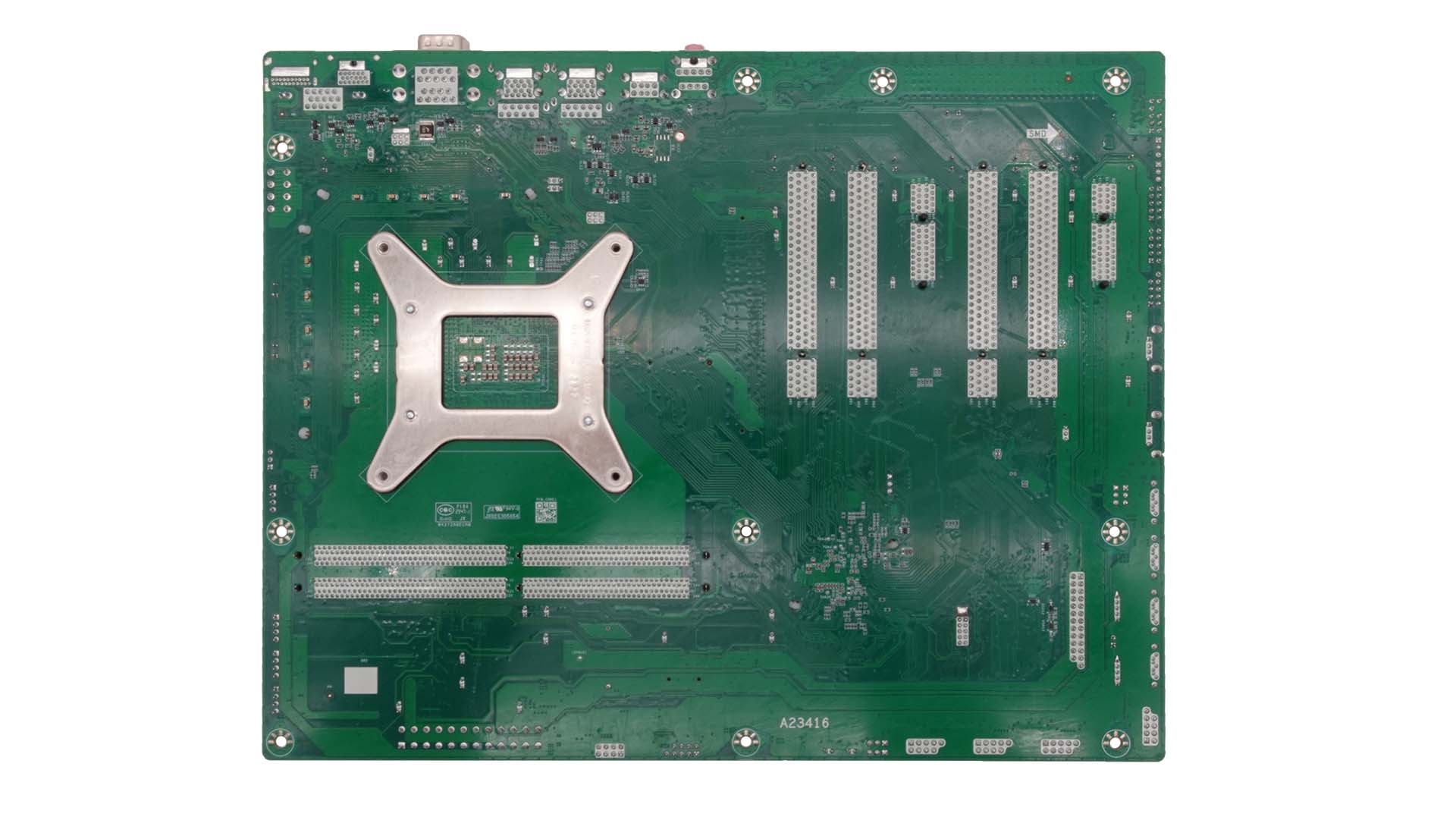

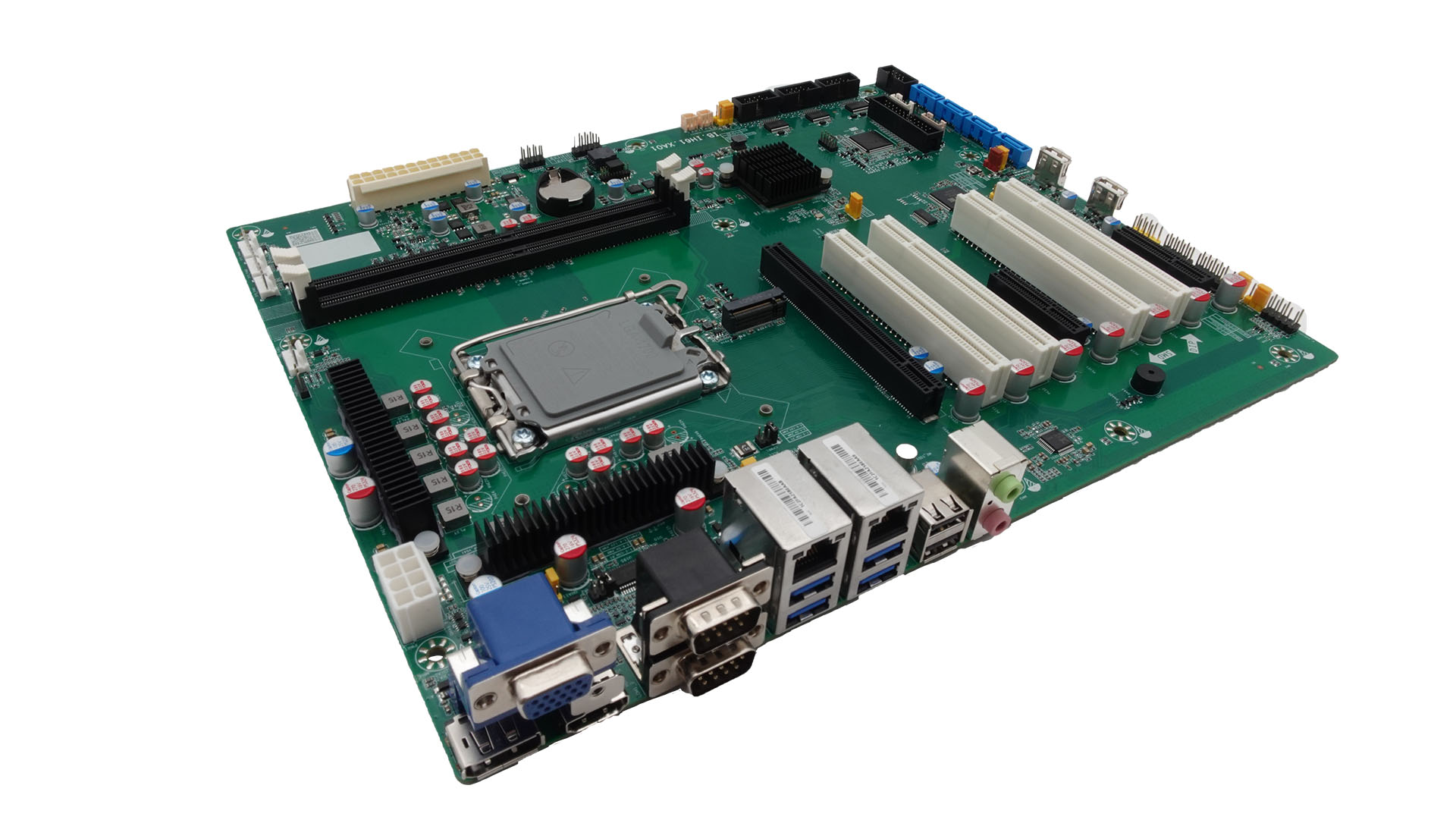

CIB-IH61-XA01
· Intel® 12th / 13th Generation Core™️ /Pentium®/Celeron® LGA 1700 Socket Processors with TDP up to 125W
· Intel® H610 Chipset
· DDR4 3200MHz 288-pin DIMM x 2, Max to 64GB (32GB per DIMM)
· 2 x RJ45: 1 x Intel® I210-AT, 1 x Intel® I219-V
· 4 x USB 3.2 (Gen 1), 2 x USB 2.0
2 x Vertical USB 2.0 Type-A, 2 x USB 2.0 (Pin Header)
· OS Recovery
· 16-bit Programmable GPIO, 8in/8out
选择产品资料
| 系统 System | |
| 处理器 Processor |
Intel® 12th / 13th Generation Core™ /Pentium®/Celeron® LGA 1700 Socket Processors with TDP up to 125W |
| 芯片组 Chipest | Intel® H610 Chipset |
| 存储 Memory | DDR4 3200MHz 288-pin DIMM x2, Max to 64GB（32GB per DIMM） |
| BIOS | AMI 128Mbit SPI Flash |
| 图形 | Intel® Integrated Graphics |
| 操作系统 | Win 10-64bit; Linux |
| 看门狗定时器 | System Reset, Programmable 255 levels timer interval, From 1~255 sec/min |

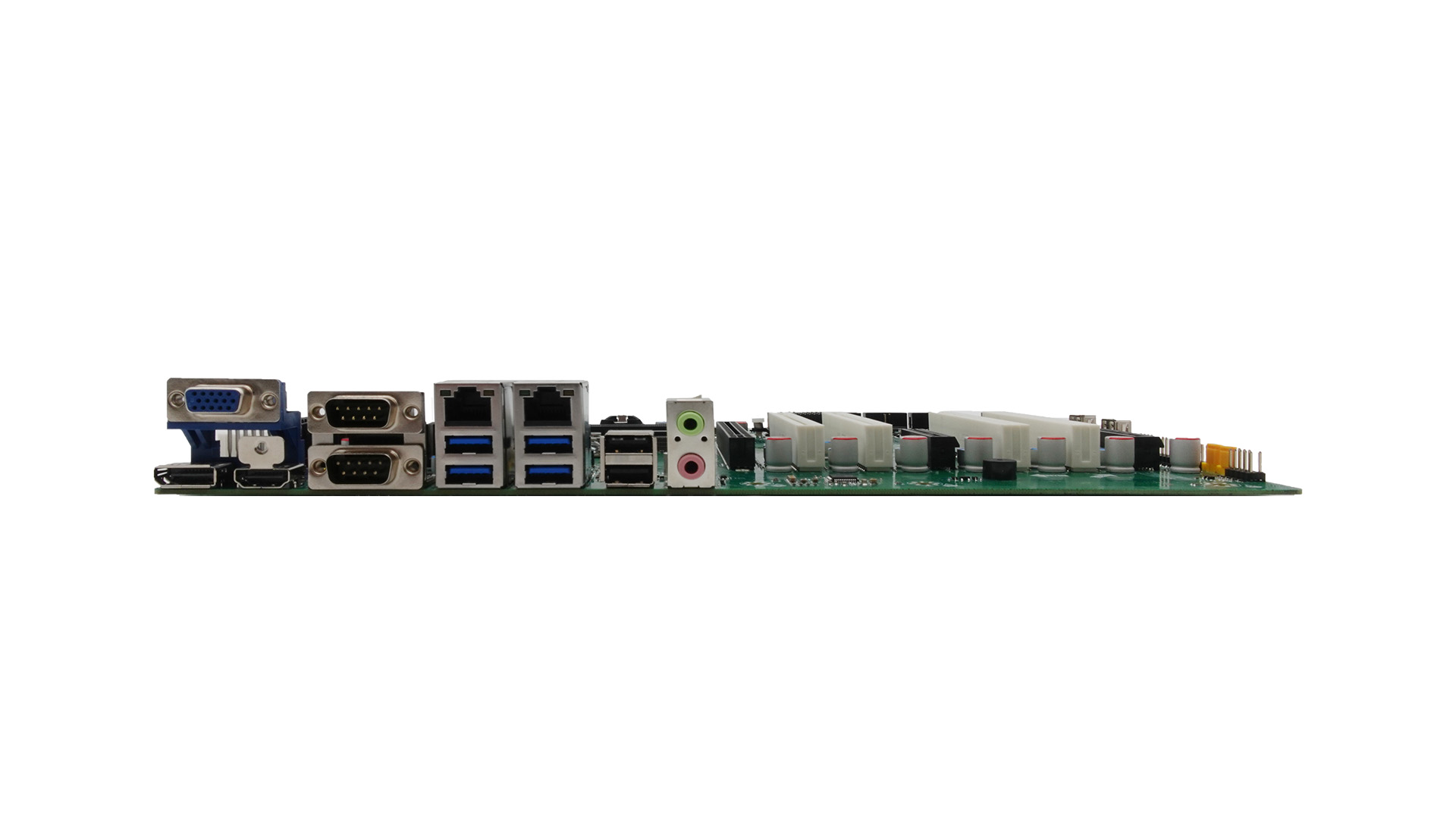

| 后部I/O Rear I/O | |
| 网口 Ethernet |
2 x RJ45 1 x Intel® I210-AT GbE（10/100/1000 Mbps） 1 x Intel® I219-V GbE（10/100/1000 Mbps） |
| 显示 Display |
1 x DP++ max resolution up to 4096 x 2304@60Hz 1 x HDMI: max resolution up to 4096 x 2160@30Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz 支持三个独立显示 |
| 音频 Audio | 1 x Line-out; 1 x Mic in |
| 串口 COM | 1 x COM（RS232/422/485 Auto-Flow）, 1 x COM（RS232） |
| USB | 4 x USB 3.2（Gen 2）, 2 x USB 2.0 |
| 扩展接口 Expansion slot | |
| 接口 Interface |
1 x PCIe x16（Gen4） |
| 内部接口 Internal I/O | |
| 扩展接口 Expansion Slot |
1 x M.2 2280 slot (SATA./NVMe PCIe x 2)
（Bom Option 切换NVMe x 2, PCIE 2 lanes from PCIe x 4 Connector） |
| 串口 COM |
4 x COM（RS232）Pin Header |
| USB |
2 x Vertical USB 2.0 Type-A |
| SATA |
4 x SATA 3.0 (up to 6Gb/s) （当 M.2 为 SATA信号时, SATA Connector 为3; 当 NVMe x 2时, SATA Connector 为 4） |
| GPIO | 1 x 16bit Programmable GPIO, 8in/8out |
| Audio |
1 x Front Audio（Line-out/Mic-in） |
| LPT |
1 x LPT Connector（BOM Option） |
| FAN |
1 x CPU Fan （4Pin support smart fan） |
| SPI |
1 x SPI Connector |
| SMBus |
1 x SMBus connector |
| OS Recovery |
1 x OS Recovery Pin Header |
| Case Open |
1 x Case Open Pin Header |
| Remote SW |
1 x 2Pin Pin Header |
| Security |
1 x TPM 2.0 Pin Header |
| LAN LED |
1 x LAN LED Connector（pitch 2.54） |
| Front Panel |
1 x Front Panel（2 x 5 Pin Connector） 包含开关, Reset, Power/HDD LED |
| 电源 Power | |
|
电源输入 Power Input |
ATX |
|
接口 Interface |
24 Pin ATX Power; 8 Pin ATX 12V Power |
| 环境 Environmental | |
|
操作温度 OperatingTemp. |
0℃ ~ 60℃ |
|
存储温度 Storage Temp. |
-40℃ ~ 85℃ |
|
操作湿度 Operating Relative Humidity |
60℃ 95%RH |
|
存储湿度 Storage Elative Humidity |
60℃ 95%RH, Non-Condensing |
|
随机振动 Random Vibration |
5~500Hz, 3.5Grms Operation |
|
正弦振动 Sine Vibration |
5~500Hz, 2G Non-Operation |
|
机械冲击 Shock |
Operation: 10G@11ms; Non-Operation: 20G@11ms |
| 机构 Mechanical | |
| 尺寸 Dimension | ATX Form Factor，305 x 244mm |
| PCB高度 | 1.6mm |
| 认证 Certification | |
| 安规认证 Safety Certification | CCC |
| 销售型号 Sales Model | |
| 销售型号 Sales Model | CIB-IH61-XA01 |
