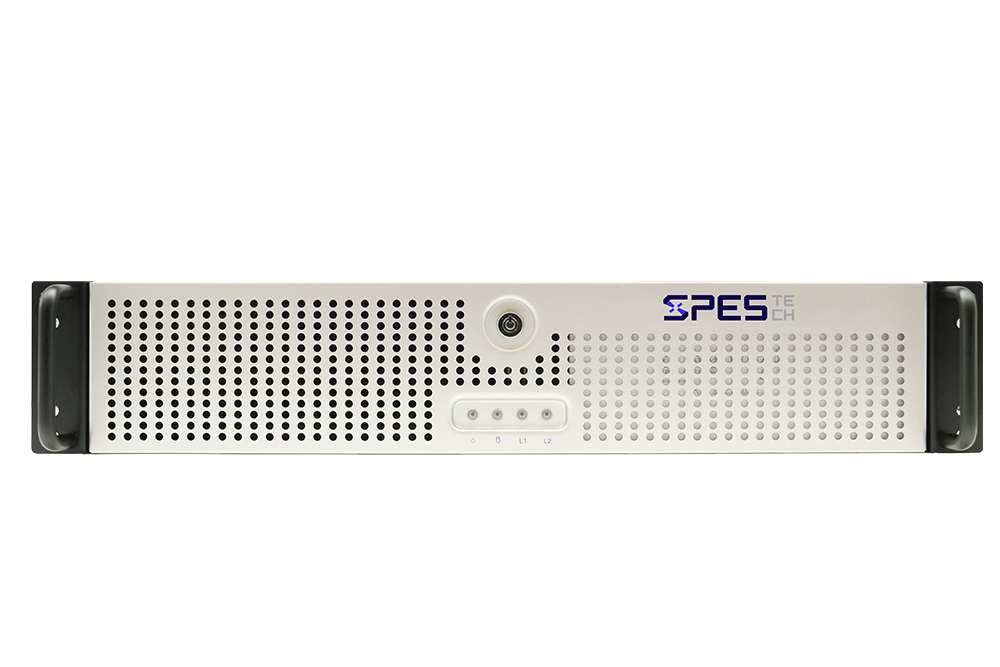

CIS-BADL-FAR1(Intel® Q670 Chipset)

2U Rack-mount PC

· CIS-BADL-FAR1(Intel® Q670 Chipset)是一款2U上架式工控机
· 产品搭载Intel® 12th/13th Generation Core™ Pentium/Geleron processor up to 125W
· 具有高稳定性的lntel®4千兆网口,全功能串口
· DP+HDMI+VGA三独立显示
· 4 x USB3.2(Gen 1), 1 x Vertical USB 3.0 Type-A
2 x USB 2.0 (2.54mm pitch) 2 x USB 3.2 Gen 1(Pin head)
· 具有源控系列产品共有的OS Recovery备份还原功能,能有效减少日常维护成本

CIS-BCML-FAR1

2U Rack-mount PC

· CIS-BCML-FAR1是一款2U上架式工控机,手旋式螺丝,免工具维护,可替换防尘网
· Intel® 10th/11th generation Core™ i9/i7/i5/i3/Pentium/Celeron processor up to 65W
·DDR4 2666/2933 MHz 288-pin DIMM x4 Max to 128GB(32GB per DIMM)
·VGA, HDMI and DP++, 三独立显示
·4 x USB3.2(Gen 2); 2 x USB3.2(Gen 1); 2× USB 2.0
·4 x SATA 3.0 (up to 6Gb/s),支持 RAID 0, 1, 5, 10
·Intel®双千兆网口
·OS Recovery
·1 x 16bit programmable GPIO

CIS-BSKL-FAR1(Intel® Q170 Chipset)

2U Rack-mount PC

· CIS-BSKL-FAR1是一款2U上架式工控机
· 产品搭载Intel® 6th〜9th generation Core™ Pentium/Geleron processor up to 65W
· 具有高稳定性的lntel®4千兆网口,全功能串口,4*USB
· DP+HDMI+VGA三独立显示
· 支持4盘可热插拔式3.5寸HDD,机箱采用手旋螺丝,免维护工具
· 具有源控系列产品共有的OS Recovery备份还原功能,能有效减少日常维护成本

CIS-DSKL-FAR1(Intel® H110 Chipset)

4U Rack-mount PC

· Intel® 6th/7th/8th/9th Generation Core™ /Pentium®/Celeron LGA 1151 Socket Processors with TDP up to 95W
· DDR4 2133/2400/2666 MHz 288-pin DIMM x2, Max to 32GB
· VGA, HDMI and DVI-D
· 4 x USB 3.2(Gen1), 2 x USB 2.0
· 1 x PCIe x 16(Gen3), 1 x PCIe x 4(Gen2), 5 x PCI
· OS Recovery
· TPM Module
· 16-bit Programmable GPIO
· KB lock, Case open
· 1250W ATX Power MAX

CIS-DSKL-FAS1(Intel® H110 Chipset)

4U Desk-mount PC

· Intel® 6th/7th/8th/9th Generation Core™ /Pentium®/Celeron®(up to 65W)
· Dual channel(Non-ECC)DDR4 2133/2400 MHz up to 32GB
· VGA, HDMI and DVI-D
· 1 x PCIe x16(Gen3), 1 x PCIe x4(Gen2), 5 x PCI
· 1 x Full-size Mini-PCIe Slot, 1 x M.2 2280 slot
· OS Recovery
· TPM Module
· 16-bit Programmable GPIO
· KB lock, Case open
· USB self-recovery, 5V/5VSB power optional

CIS-CSKL-FAS1(Intel® H110 Chipset)

3U Desk-mount PC

· Intel® 6th/7th/8th/9th Generation Core™ /Pentium®/Celeron®(up to 65W)
· Dual channel(Non-ECC)DDR4 2133/2400 up to 32(16GB per DIMM)
· VGA, HDMI and DVI-D
· 1 x PCIe x16(Gen3), 1 x PCIe x4(Gen2), 5 x PCI
· 1 x Full-size Mini-PCIe Slot, 1 x M.2 2280 slot
· OS Recovery
· TPM Module
· 16-bit Programmable GPIO
· KB lock, Case open
· USB self-recovery, 5V/5VSB power optional

CIS-CH11-FA01

3U Desk-mount PC

· Intel® 6th/7th/8th/9th generation Core™ i7/i5/i3/Pentium®/Celeron® CPU(up to 95W)
· Dual channel(Non-ECC)DDR4 2666 up to 32GB
· VGA,HDMI and DVI-D display
· 1x PCIe x16(Gen3), 1x PCIe x4(Gen2), 2x PCI
· 1 x 3.5 inthes hard disk drive(SATA3.0)
· OS Recovery
· TPM Module
· 16-bit Prog rammable GPIO
· KB lock, Case open
· USB self-recovery, 5V/5VSB power optional

CIS-DH11-FA01

4U Rack-mount PC

· Intel® 6th/7th/8th/9th Generation Core™ /Pentium®/Celeron®(up to 95W)
· Dual channel(Non-ECC)DDR4 2133/2400/2666up to 32GB(16GB per DIMM)
· VGA,HDMIand DVI-D
· 1 x PCIe x16(Gen3),1 x PCIe x4(Gen2), 5 x PCI
· 1 x Full-size Mini-PCIe Slot, 1 x M.2 2280 slot
· OS Recovery
· TPM Module
· 16-bit Programmable GPIO
· KB lock, Case open
· USB self-recovery, 5V/5VSB power optional

CIS-DSKL-FAR1(Intel® Q170 Chipset)

4U Rack-mount PC

· Intel® 6th/7th/8th/9th Generation Core™ /Pentium®/Celeron®(up to 95W)
· Dual channel(Non-ECC)DDR4 2400/2666/2933 up to 64GB(16GB per DIMM)
· VGA, HDMI and DP++
· 2 x PCIe x16(Gen3), 2 x PCIex4(Gen3), 3 x PCI
· 1 x Full-size Mini-PCIe Slot(USB/PCIE), 1 x M.2 2280 slot support SATA SSD only
· OS Recovery
· TPM Module
· 16-bit Programmable GPIO
· KB lock, Case open
· USB self-recovery, 5V/5VSB power optional
