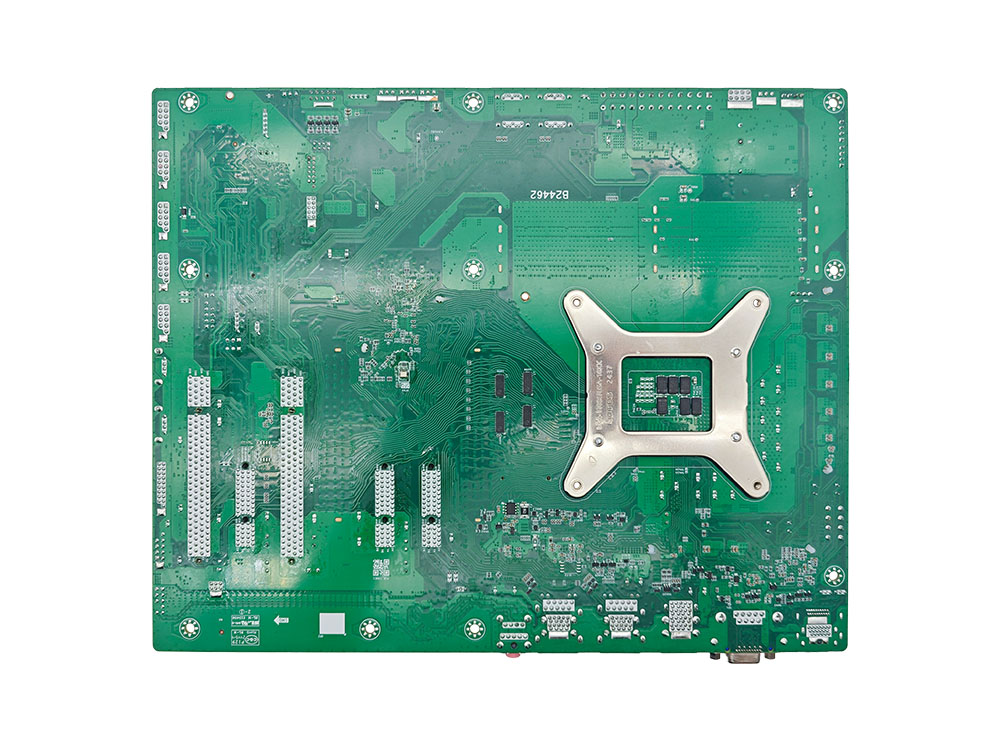

CIB-IW68-XA02

• Intel® 12th/13th/14th Gen Core™ /Pentium®/ Celeron® up to 125W
• W680 Chipset
• 4x DDR5, Max to 192GB
• 1x VGA, HDMI and DP++ display
• 2x RJ45, 6x COM, 4x SATA3.0
• 2x USB 3.2 (Gen2)
8x USB 3.2 (Gen1)
2x Vertical USB 2.0 Type-A,
2x USB 2.0
• 2x PCIe x16 (Gen4)，3x PCIe x4 (Gen4)，2x PCI
• 1x TPM 2.0 Module Extension
• 1x 8-bit GPIO
• 1x OS Recovery
• 305 x 244mm

选择产品资料

下载

系统 System
处理器 Processor	Intel® 12th/13th Generation Core™ /Pentium®/Celeron® Processors with TDP up to 125W
芯片组 Chipset	Intel® W680 Chipset
存储 Memory	4x DDR5 4800/5600MHz UDIMM, Max to 192GB（48GB per DIMM）
BIOS	AMI 256Mbit SPI Flash
图形	Intel® Integrated Graphics
操作系统	Win 10-64bit; Linux
看门狗定时器	System Reset, Programmable 255 levels timer interval, From 1~255 sec/min

扩展接口 Expansion slot
接口 Interface	2x PCIe x16 (Gen4, 1x16 or 2x8) 3x PCIe x4 (Gen4) 2x PCI

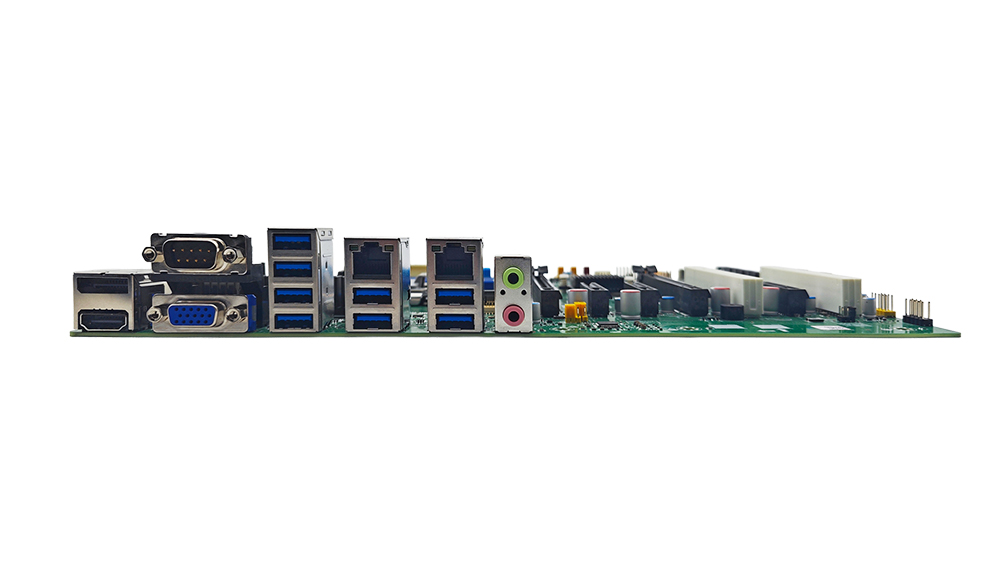

后部接口 Rear I/O
网口 Ethernet	2x RJ45： LAN1: Intel®I219-V GbE（10/100/1000 Mbps） LAN2: Intel®I210-AT GbE（10/100/1000 Mbps）
显示 Display	1x DP++: max resolution up to 4096 x 2304@60Hz 1x HDMI: max resolution up to 4096 x 2160@30Hz 1x VGA: max resolution up to 1920 x 1200@60Hz 支持三屏异显
音频 Audio	1x Line-out; 1 x Mic-in
串口 COM	1x COM (RS232/422/485, Default RS232)
USB	2x USB 3.2（Gen 2） 6x USB 3.2（Gen 1）

内部接口 Internal I/O
扩展接口 Expansion Slot	1x M.2 2280 M Key (SATA or PCIE x4 NVMe Gen4） 1x M.2 2280 M Key (PCIE x4 NVMe Gen4）
串口 Com	1x COM (RS232/422/485,Default RS232) 4x COM (RS232)
USB	2x Vertical USB 2.0 Type-A 2x USB 3.2 (Gen1) 2x USB 2.0
SATA	4x SATA 3.0, 支持 Raid 0, 1, 5, 10
GPIO	1x 8bit GPIO, Default 为 4in/4out
Audio	1x Front Audio（Line-out/Mic-in）
PS/2	1x PS/2
FAN	1x CPU Fan 3x System Fan
OS Recovery	1x OS Recovery
Remote SW	1x Remote SW
Security	1x TPM 2.0 Module Extension
LAN LED	1x LANLED
Front Panel	1x Front Panel

电源 Power

电源输入

Power Input

ATX

机构 Mechanical
尺寸 Dimension	ATX Form Factor，305 x 244mm

环境 Environmental
操作温度 OperatingTemp.	0℃ ~ 60℃
存储温度 Storage Temp.	-40℃ ~ 85℃
操作湿度 Operating Relative Humidity	60℃ 95%RH
存储湿度 Storage Elative Humidity	60℃ 95%RH, Non-Condensing
随机振动 Random Vibration	5~500Hz, 3.5Grms Operation
正弦振动 Sine Vibration	5~500Hz, 2G Non-Operation
机械冲击 Shock	Operation: 10G@11ms; Non-Operation: 20G@11ms

销售型号 Sales Model
销售型号 Sales Model	CIB-IW68-XA02
