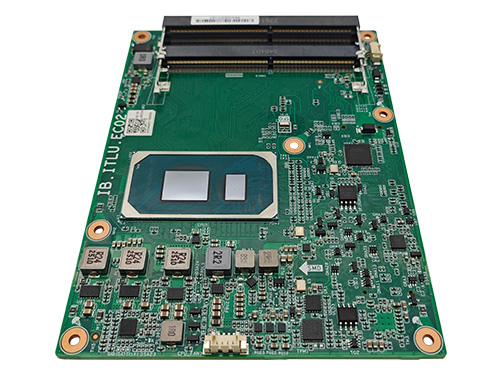

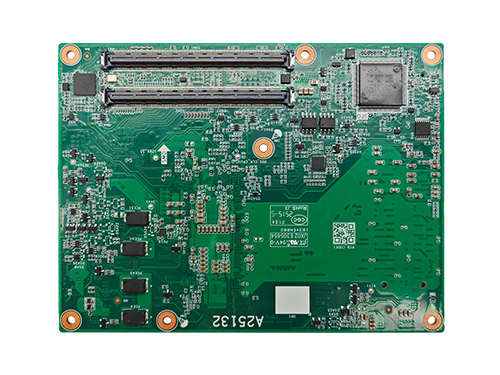

CIB-ITLU-EC02

• COM Express R3.0 Type 6
• Intel® 11th i7/i5/i3/Celeron CPU (Tiger Lake UP3)
• i3-1115G4/i5-1145G7/i7-1165G7/6305E
• 2x DDR4 Max to 64GB
• 8x USB 2.0, 5x PCIe x1, 2x SATA 3.0
• 适配 VGA, LVDS/eDP, DP, HDMI 输出
• 支持 COM, GPIO, TPM 等功能
• 125 x 95mm（不含结构）

选择产品资料

下载

系统 System
处理器 Processor	Intel® 11th i7/i5/i3/Celeron 处理器 (Tiger lake UP3) i3-1115G4/i5-1145G7/i7-1165G7/6305E
内存 Memory	2x DDR4 2666/2933/3200MHz SO-Dimm, Up to 64GB
BIOS	AMI 128Mbit SPI Flash
图形 Graphics	Intel® Integrated Graphics
操作系统 OS	Windows 10 64bit; Linux
看门狗定时器 Watchdog Timer	System Reset, Programmable 255 levels timer interval, From 1~255 sec/min

接口 Internal I/O
Form FactorPin-out Type		COM Express R3.0 Type 6
Connector ROW A,B	Display	1x LVDS Up to 1920 x 1080@60Hz；Default, Colay eDP 信号 1x eDP Up to 4096 x 2304@60Hz；默认无, Colay LVDS 1x VGA Up to 1920 x 1200@60Hz；Default, Colay DDI3 From Connector ROW C,D
	HDA	1x HD Audio
	LAN	1x Controller1 Intel® I226-V GbE (10/100/1000 Mbps) MDI
	USB	8x USB 2.0
	SATA	2x SATA 3.0
	PCIE	5x PCIE x1
	LPC	1x LPC
	I2C	1x I2C
	FAN	1x FAN
	SPI	1x SPI
	SMBUS	1x SMBUS
Connector ROW C,D	Display	1x DDI1 Port for HDMI / DisplayPort 1x DDI2 Port for HDMI / DisplayPort 1x DDI3 Port for HDMI / DisplayPort ,Colay Connector ROW A, B, VGA, 默认无
	PCIE	1x PCIe x4
	USB	4x USB 3.2 Gen2
	DC_in	DC IN 12V
