工业计算机
Industrial PC
CIS-CSKL-FAS1(H110)
• 3U Desk-mount
• Intel® 6th/7th Generation Core™/Pentium®/Celeron®(up to 65W)
• H110 Chipset
• 2x DDR4, Max to 32GB
• 2x RJ45
• VGA, HDMI and DP++
• 4x SATA 3.0, 6x COM
• 2x USB 3.2(Gen 2), 6x USB 3.2(Gen 1)
• OS Recovery
• 1x TPM 2.0
• 1x 16-bit GPIO
• 1x OS Recovery
选择产品资料
系统 System | |
处理器 Processor |
Intel® 6th/7th Generation Core™ /Pentium®/Celeron® |
芯片组 Chipset | Intel® H110 Chipset |
内存 Memory |
2x DDR4 2133/2400MHz 288-pin DIMM,Max to 32GB(16GB per DIMM) |
BIOS | AMI 128Mbit SPI Flash |
图形 Graphics | Intel® Integrated Graphics |
操作系统 OS | Windows 7 32/64bit;Windows 10 64bit; Linux |
看门狗定时器 Watchdog Timer |
System reset,programmable 255 levels timer interval, from 1~255 sec/min |
扩展接口 Expansion slot | |
接口 Interface |
1x PCIe x16(Gen3) 1x PCIe x4(Gen2) 5x PCI |
前部I/O Front I/O | |
开关 | 1x Power button w/LED |
LED | 1x HDD LED |
USB | 2x USB 2.0 |
OS Recovery | 1x OS Recovery |
Fan | 1x 12025 system fan (可替换式过滤网) |

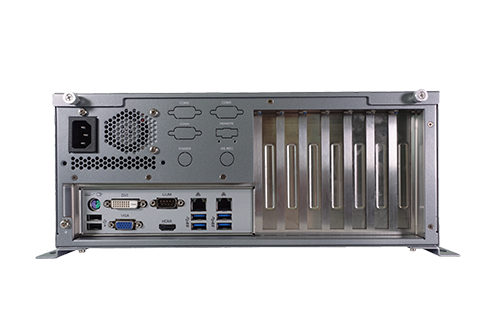

后部I/O Rear I/O | |
网口 Ethernet |
2x RJ45: LAN1: Intel® I219-V GbE(10/100/1000 Mbps) LAN2: Intel® I210-AT GbE(10/100/1000 Mbps) |
显示 Display |
1x VGA: max resolution up to 1920 x 1200@60Hz 1x HDMI: max resolution up to 4096 x 2160@24Hz 1x DVI-D: max resolution up to 1920 x 1200@60Hz 支持双屏异显 |
音频 Audio | 1x Line-in, 1x Line-out, 1x Mic-in, 选配, 默认不上件 |
串口 COM | 1x COM(RS232/422/485 auto-flow); 支持5V/12V供电, 默认无供电 |
USB |
4x USB 3.2(Gen1) , 2 x USB 2.0 |
PS/2 | 1x PS/2(mini-DIN-6) |
内部接口 Internal I/O | |
扩展接口 Expansion Slot |
1x Full-size Mini-PCIe (USB2.0) |
串口 COM |
1x COM(RS232/422/485 auto-flow)pin header, 支持5V/12V供电, 默认无供电 4x COM(RS232)pin header |
USB |
1x Vertical USB 2.0 Type-A |
SATA | 4x SATA 3.0 |
GPIO | 1x 16bit GPIO, default 为8in/8out |
音频 | 1x Front Audio (Line-out/Mic-in)默认不上件 |
LPT | 1x LPT |
SIM卡 | 1x Nnao SIM |
FAN |
1x CPU fan 2x System fan |
OS Recovery | 1x OS Recovery |
安全 Security | 1x TPM 2.0 Module Extension |
LAN LED | 1x LAN LED |
Front panel |
1x Front panel |
电源 Power | |
电源输入 Power Input |
ATX |
ATX power |
250W / 350W /450W Flex ATX power |
环境 Environmental | |
操作温度 OperatingTemp. |
0℃ ~ 40℃(HDD) |
存储温度 Storage Temp. |
-40℃ ~ 60℃ |
操作湿度 Operating Relative Humidity |
40℃ 95%RH(HDD) |
存储湿度 Storage Elative Humidity |
60℃ 95%RH, Non-condensing |
随机振动 Random Vibration |
5~500Hz, 2Grms(SSD)operation,5~500Hz, 1Grms(HDD)operation, |
正弦振动 Sine Vibration |
5~500Hz, 2G Non-operation |
机械冲击 Shock |
Operation: 10G@11ms ; Non-operation: 20G@11ms |
机构 Mechanical | |
尺寸 Dimension | 标准款: 330 x 300 x 135mm |
加长款: 330 x 340 x 135mm | |
安装方式 Mounting | 桌面式(Desk-Mount) |
认证 Certification | |
安规认证 Safety Certification | CCC |
销售型号 Sales Model | |
销售型号 | CIS-CH11-FAS1 |
