工业计算机
Industrial PC
CIS-BSKL-FAR1(H110)
2U Rack-mount PC
· CIS-BSKL-FAR1(H110)是一款2U上架式工控机
· 产品搭载Intel® 6th〜9th generation Core™ Pentium/Geleron processor up to 95W
· 具有高稳定性的lntel®4千兆网口,全功能串口,4*USB
· DP+HDMI+VGA三独立显示
· 支持4盘可热插拔式3.5寸HDD,机箱采用手旋螺丝,免维护工具
· 具有源控系列产品共有的OS Recovery备份还原功能,能有效减少日常维护成本
选择产品资料
系统 System | |
处理器 Processor |
Intel® 6th/7th/8th/9th Generation CoreTM i9/i7/i5/i3/Pentium/Celeron Processor up to 95W |
芯片组 Chipset | Intel® H110 Chipset |
内存 Memory | 2x DDR4 2133/2400/2666 MHz 288-pin DIMM, Max to 32GB |
BIOS | AMI 128Mbit SPI Flash |
图形 Graphics | Intel® Integrated Graphics |
操作系统 OS | Win 7-32/64bit; Win 10-64bit ; Linux |
看门狗定时器 Watchdog Timer |
System Reset,Programmable 255 levels timer interval, From 1~255 sec/min |
扩展接口 Expansion Slot | |
网口 Ethernet | 1x PCIe x16(Gen3) 1x PCIe x4(Gen2) 5x PCI |
前部I/O Front I/O | |
开关/LED | 1x PCIe x16(Gen4) 1x PCIe x4(Gen3)(Bom Option:可切换PCIE x 2,Other PCIE x2 for M.2 Nvme) 1x PCIe x2 (Gen3) 4x PCI |
USB | 2x USB 2.0 |
可扩展 | 2x 5.25" 光驱位, 1x 2.5" 软驱位 |
FAN | 1x 12025 system fan (可抽拉替换式过滤网) |

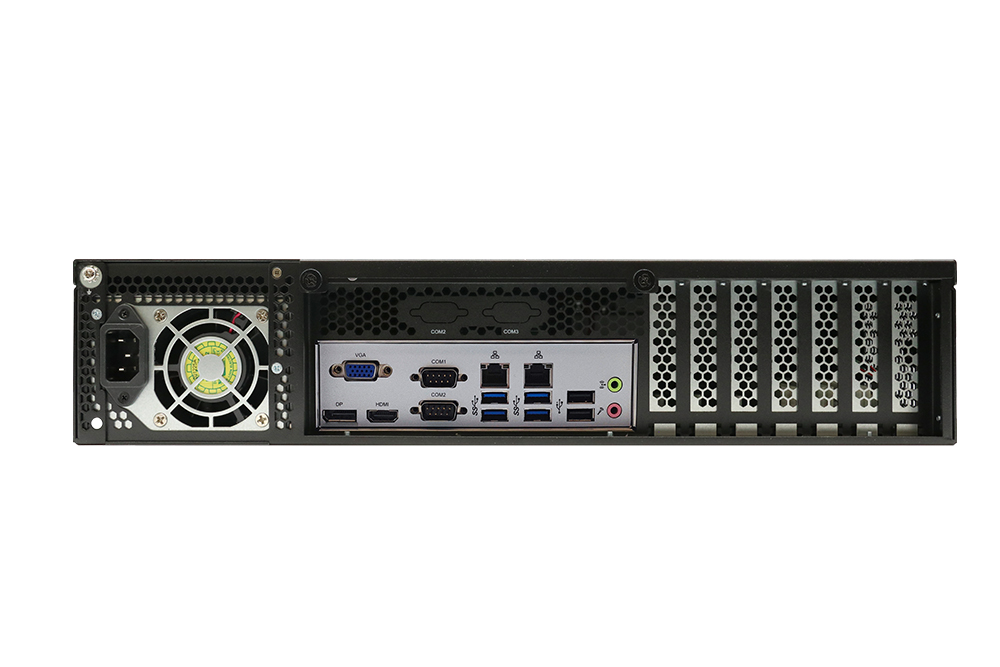

后部I/O Rear I/O | |
网口 Ethernet |
2x RJ45: 1x Intel® I210-AT GbE(10/100/1000 Mbps) 1x Intel® I219-V GbE(10/100/1000 Mbps) |
显示 Display |
1x DP++ max resolution up to 4096 x 2304@60Hz |
音频 Audio | 1x Line-in, 1 x Line-out, 1 x Mic-in, 选配, 默认不上件 |
串口 COM | 1x COM(RS232/422/485 Auto-Flow); 支持5V/12V供电, 默认无供电 |
USB | 4x USB 3.2(Gen 1), 2x USB 2.0 |
FAN | 2x 8025 System Fan |
内部接口 Internal I/O | |
扩展接口 Expansion Slot |
1 x Full-size Mini-PCIe Slot (与PCIe x 4复用) |
串口 COM |
1x COM(RS232/422/485 Auto-Flow)Pin Header, 支持5V/12V供电, 默认无供电 4x COM(RS232)Pin Header |
USB |
1x Vertical USB 2.0 Type-A 2x USB 2.0 (2.54mm pitch) |
SATA | 4x SATA 3.0(up to 6Gb/s), Raid 0, 1, 5, 10 |
GPIO | 1x 16bit Programmable GPIO, 8in/8out |
Audio | 1x Front Audio(Line-out/Mic-in) 默认不上件 |
LPT | 1x LPT connector |
SIM | 1x SIM Card Slot |
FAN |
1x CPU Fan (4Pin support smart fan) 2x System Fan(4Pin support smart fan), BIOS侦测风扇状态 |
OS Recovery | 1x OS Recovery pin header |
Case Open | 1x Case open pin header |
Security |
1x TPM 2.0 pin header |
LAN LED | 1x LANLED Connector(pitch 2.54) |
安全 Security |
1x TPM 2.0 |
电源 Power | |
电源输入 Power Input |
ATX 550W Redundant Power System |
接口 Interface |
24Pin ATX Power, 8Pin ATX 12V Power |
环境 Environmental | |
操作温度 OperatingTemp. |
0℃ ~ 40℃(HDD) |
存储温度 Storage Temp. |
-40℃ ~ 60℃ |
操作湿度 Operating Relative Humidity |
40℃ 95%RH |
存储湿度 Storage Elative Humidity |
60℃ 95%RH, No-Condensing |
随机振动 Random Vibration |
5~500Hz, 2Grms(SSD)Operation,5~500Hz, 1Grms(HDD)Operation, |
正弦振动 Sine Vibration |
5~500Hz, 2G Non-Operation |
机械冲击 Shock |
Operation: 10G@11ms ; Non-Operation: 20G@11ms |
机构 Mechanical | |
外挂吗 Housing | 铝合金 Aluminum Alloy |
安装方式 Mountig | 上架式(Rack) |
尺寸 Dimension | 483.84 x 426.4 x 88.4mm |
销售型号 Sales Model | |
销售型号 | CIS-BH11-FAR1 |
