CIS-BADL-FAR1(Q670)

2U Rack-mount PC
· CIS-BADL-FAR1(Q670)是一款2U上架式工控机,Q670平台
· 产品搭载Intel® 12th/13th Generation Core™ Pentium/Geleron processor up to 125W
· 具有高稳定性的lntel® 4x 千兆网口,全功能串口
· DP+HDMI+VGA三独立显示
· 4x USB 3.2 (Gen 1), 1x Vertical USB 3.0 Type-A
2 x USB 2.0 (2.54mm pitch) 2 x USB 3.2 Gen 1(Pin head)
· 具有源控系列产品共有的OS Recovery备份还原功能,能有效减少日常维护成本

选择产品资料

下载
系统 System
处理器 Processor

Intel® 12th/13th Generation CoreTM i9/i7/i5/i3/Pentium/Celeron Processor up to 125W

芯片组 Chipset Intel® Q670 Chipset
内存 Memory 4x DDR4 3200 MHz 288-pin DIMM  Max to 128GB(32GB per DIMM)
BIOS AMI 128Mbit SPI Flash
图形 Graphics Intel® Integrated Graphics
操作系统 OS Win 10-64bit ; Linux

看门狗定时器

Watchdog Timer

System Reset,Programmable 255 levels timer interval, From 1~255 sec/min
扩展接口 Expansion Slot
接口 Interface 2x PCIe x16(Gen4), 2 x16 slot, only support 1x16 or 2x8
3x PCIe x4(Gen4)
1x PCIe x1 (Gen3)
1x PCI

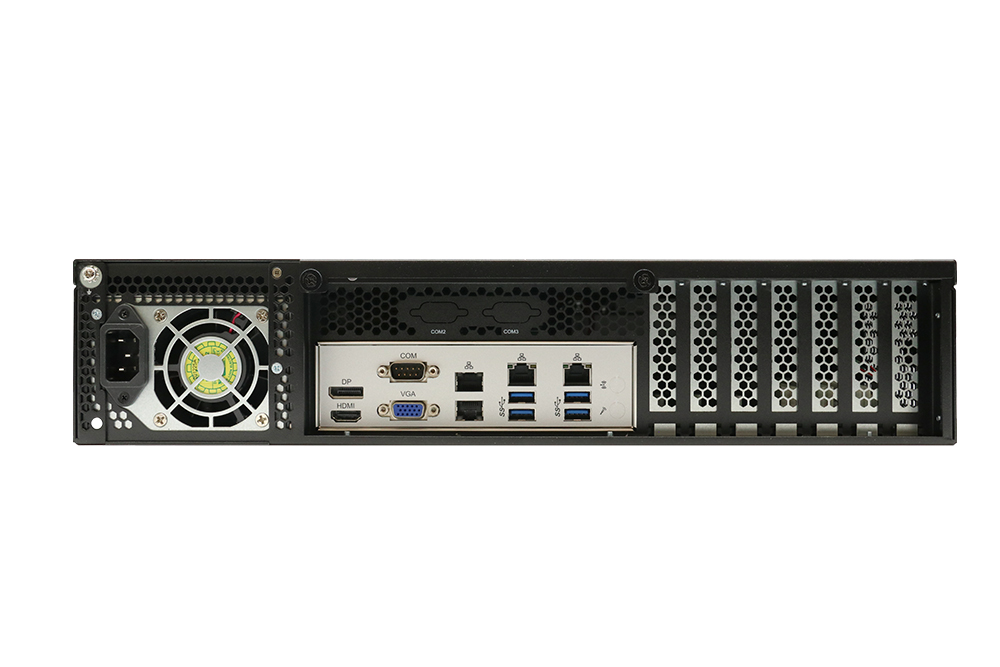

后部I/O Rear I/O
网口 Ethernet

4x RJ45:

3x Intel® I226-AT GbE(10/100/1000 Mbps)

1x  Intel® I219-V GbE(10/100/1000 Mbps)

显示 Display

1x DP++ max resolution up to 4096 x 2304@60Hz
1x HDMI: max resolution up to 4096
2160@30Hz
1x VGA: max resolution up to 1920 x 1200@60Hz

音频 Audio 1x Line-out, 1 x Mic-in, 选配, 默认不上件
串口 COM 1x COM(RS232/422/485 Auto-Flow);
支持5V/12V供电, 默认无供电
USB 2x USB 3.2(Gen 2)
2x USB 3.2(Gen 1)
FAN 2x 6025 System Fan
前部I/O Front I/O
开关/LED 1x Power Button, 1x Reset Button, 1x KB Lock Button
1x KB Lock LED, 1x Power LED, 1x HDD LED
USB 1x Power LED, 1 x HDD LED,2 x LAN LED
可扩展 2x 5.25" 光驱位, 1x 2.5" 软驱位
FAN 1x 12025 system fan (可抽拉替换式过滤网)

内部接口 Internal I/O

扩展接口

Expansion Slot

1x Full-Size Mini-PCIe Slot

1x M.2 2280 Slot, 支持 SATA/PCIE x 4 NVMe SSD

串口 COM

1x COM(RS232/422/485 Auto-Flow)Pin Header, 支持5V/12V供电, 默认无供电

4x COM(RS232)Pin Header

USB

1x Vertical USB 3.2 Gen1 Type-A
2x USB 2.0 (2x5Pin 2.54mm pitch)
2x USB 3.2 Gen1(Pin header )
2x USB 3.2 Gen2(Pin header )

SATA 4x SATA 3.0(up to 6Gb/s), Raid 0, 1, 5, 10
GPIO 1x 16bit Programmable GPIO, 8in/8out
Audio 1x Front Audio(Line-out/Mic-in) 默认不上件
PS/2 1x PS/2 connector 6pin
SIM 1x SIM Card Slot
FAN

1x CPU Fan (4Pin support smart fan)

3x System Fan(4Pin support smart fan), BIOS侦测风扇状态

SPI

1x SPI connector

SMBus

1x SMBus connector

KB Lock

1x KB lock pin header

OS Recovery 1x OS Recovery Pin Header
Case Open 1x Case Open Pin Header
Remote SW
1x 2pin Pin Header
LAN LED 2x LANLED Connector(pitch 2.54)
Security

1x TPM 2.0 Pin Header

Front Panel

1x Front panel(2 x 5 pin connector) 包含开关, Reset, Power/HDD LED

电源 Power

电源输入

Power Input

ATX 550W Power System

接口

Interface

24Pin ATX Power, 8Pin ATX 12V Power
环境 Environmental

操作温度

OperatingTemp.

0℃ ~ 40℃(HDD)

存储温度

Storage Temp.

-40℃ ~ 60℃

操作湿度

Operating Relative Humidity

40℃ 95%RH

存储湿度

Storage Elative Humidity

60℃ 95%RH, No-Condensing

随机振动

Random Vibration

5~500Hz, 2Grms(SSD)Operation,5~500Hz, 1Grms(HDD)Operation,

正弦振动

Sine Vibration

5~500Hz, 2G Non-Operation

机械冲击

Shock

Operation: 10G@11ms;
Non-Operation: 20G@11ms
机构 Mechanical
外观 Housing 铝合金 Aluminum Alloy
安装方式 Mountig 上架式(Rack)
尺寸 Dimension 483.84 x 426.4 x 88.4mm
销售型号 Sales Model
销售型号 CIS-BQ67-FAR1
