工业计算机
Industrial PC

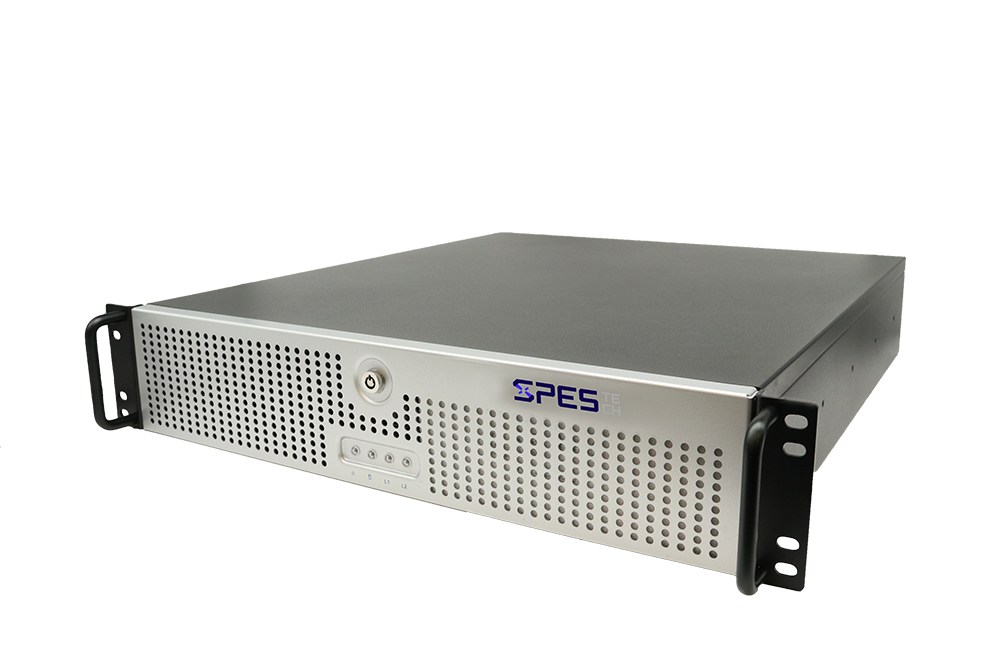

CIS-BCML-FAR1
2U Rack-mount PC
· CIS-BCML-FAR1是一款2U上架式工控机，手旋式螺丝，免工具维护，可替换防尘网
· Intel® 10th/11th generation Core™ i9/i7/i5/i3/Pentium/Celeron processor up to 65W
·DDR4 2666/2933 MHz 288-pin DIMM x4 Max to 128GB（32GB per DIMM）
·VGA, HDMI and DP++, 三独立显示
·4 x USB3.2（Gen 2）; 2 x USB3.2（Gen 1）; 2× USB 2.0
·4 x SATA 3.0 (up to 6Gb/s)，支持 RAID 0, 1, 5, 10
·Intel®双千兆网口
·OS Recovery
·1 x 16bit programmable GPIO
选择产品资料
| 系统 System | |
| 处理器 Processor |
Intel®10th/11th Generation CoreTM i9/i7/i5/i3/Pentium/Celeron Processor up to 65W |
| 芯片组 Chipset | Intel® Q470 Chipset |
| 内存 Memory | 4 x DDR4 3200 MHz 288-pin DIMM Max to 128GB（32GB per DIMM) |
| BIOS | AMI 128Mbit SPI Flash |
| 图形 Graphics | Intel® Integrated Graphics |
| 操作系统 OS | Win 10-64bit ; Linux |
|
看门狗定时器 Watchdog Timer |
System Reset，Programmable 255 levels timer interval, From 1~255 sec/min |
| 后部I/O Rear I/O | |
| 网口 Ethernet |
Controller1 Intel® I210-AT GbE（10/100/1000 Mbps） Controller2 Intel® I219-V GbE（10/100/1000 Mbps） |
| 显示 Display |
1 x DP++ max resolution up to 4096 x 2304@60Hz |
| 音频 Audio | 1 x Line-out, 1 x Mic-in |
| 串口 COM | 1 x COM(RS232/422/485 Auto-Flow); 支持5V/12V供电, 默认无供电 |
| USB | 4 x USB 3.2（Gen 2）,2 x USB 3,2（Gen 1） 2 x USB 2.0 |
| FAN | 2 x 8025 System Fan |
| 前部I/O Front I/O | |
| 开关 | 1 x Power Button |
| LED | 1 x Power LED, 1 x HDD LED，2 x LAN LED |
| 内部接口 Internal I/O | |
|
扩展接口 Expansion Slot |
1 x Full-Size Mini-PCIe Slot 1 x M.2 2280 Slot, 支持 SATA/PCIE x 4 NVMe SSD |
| 串口 COM |
1 x COM(RS232/422/485 Auto-Flow)Pin Header, 支持5V/12V供电, 默认无供电 4 x COM(RS232)Pin Header |
| USB |
1 x Vertical USB 2.0 Type-A 2 x USB 2.0（2.54mm pitch） |
| SATA | 4 x SATA 3.0（up to 6Gb/s）, Raid 0, 1, 5, 10 |
| GPIO | 1 x 16bit Programmable GPIO, 8in/8out |
| Audio | 1 x Front Audio(Line-out/Mic-in) 默认不上件 |
| SIM | 1 x SIM Card Slot |
| FAN |
1 x CPU Fan (4Pin support smart fan) |
| OS Recovery | 1 x OS Recovery pin header |
| Case Open | 1 x Case open pin header |
| Remote SW |
1 x 2pin Pin Header |
| LAN LED | 1 x LANLED Connector（pitch 2.54） |
| 安全 Security |
1 x TPM 2.0 |
| 电源 Power | |
|
电源输入 Power Input |
ATX 550W Redundant Power System |
|
接口 Interface |
24Pin ATX Power, 8Pin ATX 12V Power |
| 环境 Environmental | |
|
操作温度 OperatingTemp. |
0℃ ~ 40℃（HDD） |
|
存储温度 Storage Temp. |
-40℃ ~ 60℃ |
|
操作湿度 Operating Relative Humidity |
40℃ 95%RH |
|
存储湿度 Storage Elative Humidity |
60℃ 95%RH, No-nCondensing |
|
随机振动 Random Vibration |
5~500Hz, 2Grms（SSD）Operation，5~500Hz, 1Grms（HDD）Operation, |
|
正弦振动 Sine Vibration |
5~500Hz, 2G Non-Operation |
|
机械冲击 Shock |
Operation: 10G@11ms ； Non-Operation: 20G@11ms |
| 机构 Mechanical | |
| 外挂吗 Housing | 铝合金 Aluminum Alloy |
| 安装方式 Mountig | 上架式（Rack） |
| 尺寸 Dimension | 485 x 426.5 x 88.5mm |
| 销售型号 Sales Model | |
| 销售型号 | CIS-BQ47-FAR1 |
