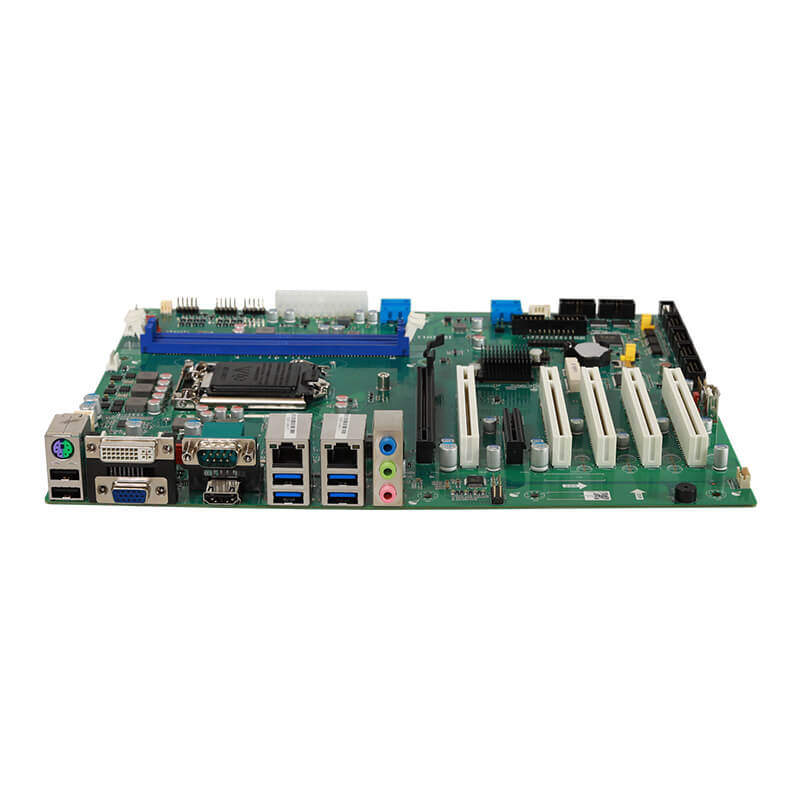

CIB-IH11-XA01

支持Intel® 6th/7th Generation Core™/Pentium®/Celeron® processor (up to 95W)
支持Dual channel (Non-ECC) DDR41866/2133/2400 up to 32GB
支持VGA ,HDMI and DVI-D display
具有丰富的I/O接口4xSATA3.0, 4xUSB3.0, 4xUSB2.0, 2xlntel GbEs, 6xCOM
支持1x PCIe xl6 (Gen3) ,1x PCIe x4 (Gen2), 5x PCI扩展槽
具有OS recovery功能，有效降低售后维护费用
支持硬件TPM模块
具有16-bit可编GPIO
具备KB lock及Case open功能以提高安全性
具备USB自我恢复功能,以及含有一个内部的USB type A接口

选择产品资料

下载
系统
处理器 6th/7th Generation Intel® Core™ /Pentium® /Celeron® LGA 1151 Socket Processors with TDP up to 95W
芯片组 Intel® H110 Chipset
内存 Dual Channel(Non-ECC)DDR4 2133/2400( Intel 7th CPU support) MHz
288-pin DIMM x2,Max to 32GB (16GB per DIMM)
BIOS AMI 128Mbit SPI Flash
图形 Intel® HD 530( for Intel Intel 6th CPU ) Intel® HD 630(for Intel Intel 7th CPU )
操作系统 Windows 7 32/64bit;Windows 10 64bit; Linux
看门狗定时器 System reset，programmable 255 levels timer interval, from 1~255 sec/min
扩展接口
接口 1 x PCIe x16( Gen3); 1 x PCIe x4 ( Gen2); 5 x PCI

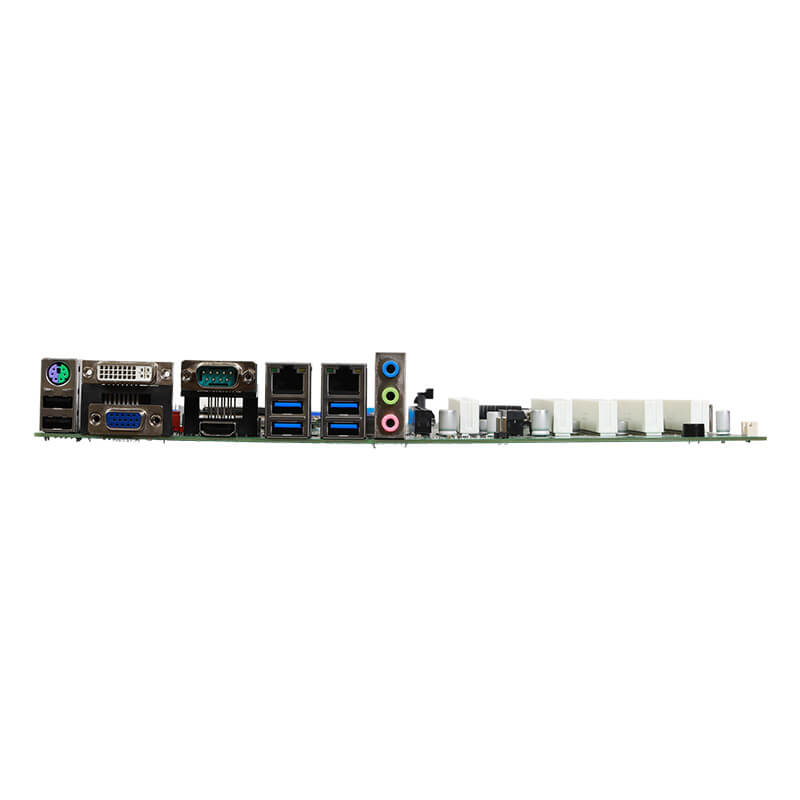

后部I/O
网口 2 x RJ45 ； Controllerl Intel® 1211 AT GbE (10/100/1000 Mbps)
                  Controller2 Intel® 1219V GbE (10/100/1000 Mbps)
显示 1 x VGA: max resolution up to 1920 x 1200@60Hz
1 x HDMI: max resolution up to 4096 x 2160@24Hz
1 x DVI-D： max resolution up to 1920 x 1200@60Hz
支持双屏异显
音频 1 x Line-in ; 1 x Line-out; 1 x Mic-in
PS/2 1 x PS/2 (mini-DIN-6)
串口 1 x COM (RS232/422/485 auto-flow),带有 5V/12V power
USB 4x USB 3.0 ; 2x USB 2.0
内部接口
扩展接口

1 x Full-size Mini-PCIe Slot;

1 x M.2 2280/2242 slot (与 SATA1 复用)
串口

1 x COM (RS232/422/485 auto-flow) pin header 支持5V/12V供电，默认无供电;

4 x COM (RS232) pin header
USB 1 x Vertical USB 2.0 type A; 2x USB 2.0 (2.54mm pitch)
SATA 4 x SATA 3.0 (up to 6Gb/s)
GPIO 1 x 16bit programmable GPIO,default 为 8in/8out
SIM卡 1 xSIM Card Slot
风扇 1 x CPU fan ; 2 x System fan
音频 1 x Front Audio (Line-out/Mic-in); 1 x S/PDIF
SPI 1 x SPI connector
SMBus 1 x SMBus connector
LPT 1 x LPT connector
KB lock 1 x KB lock pin header
OS recovery 1 x OS recovery pin header
Case open 1 x Case open pin header
安全 1 x TPM 2.0 pin header
环境 Environmental
操作温度
OperatingTemp		 0℃ ~ 60℃
存储温度
Storage Temp		 -40℃ ~ 85℃
操作湿度
Operating Relative Humidity		 60℃ 95%RH
存储湿度
Storage elative Humidity		 60℃ 95%RH 非凝露Non-condensing
随机振动
Random Vibration		 5~500Hz, 3.5Grms operation
正弦振动
Sine Vibration		 5~500Hz, 2G Non-operation
机械冲击 Shock Operation: 10G@11ms; Non-operation: 20G@11ms
电源
电源输入 ATX
接口 24Pin ATX power; 8Pin ATX 12V power
机构
尺寸 305 x 244mm
PCB高度 1.6mm
认证
安规认证 CE,FCC,RoHS
销售型号 Sales Model
销售型号 Sales Model CIB-IH11-XA01
