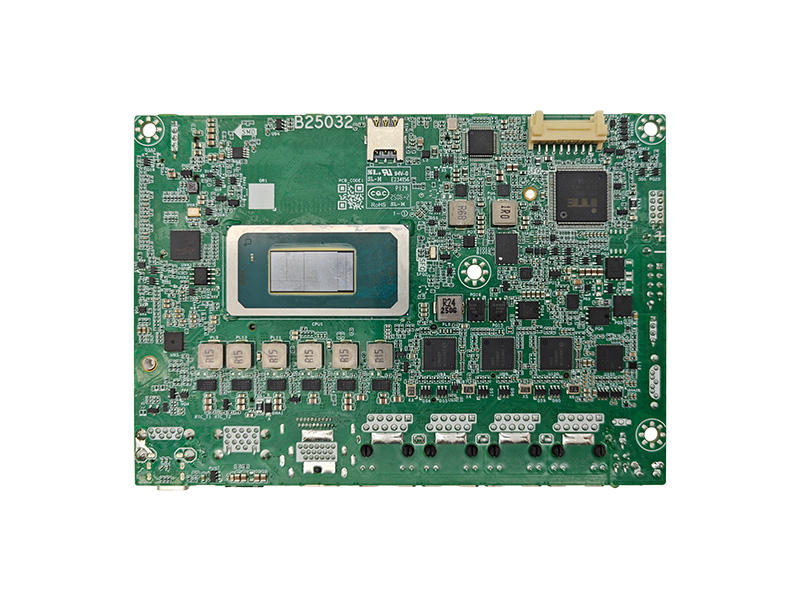

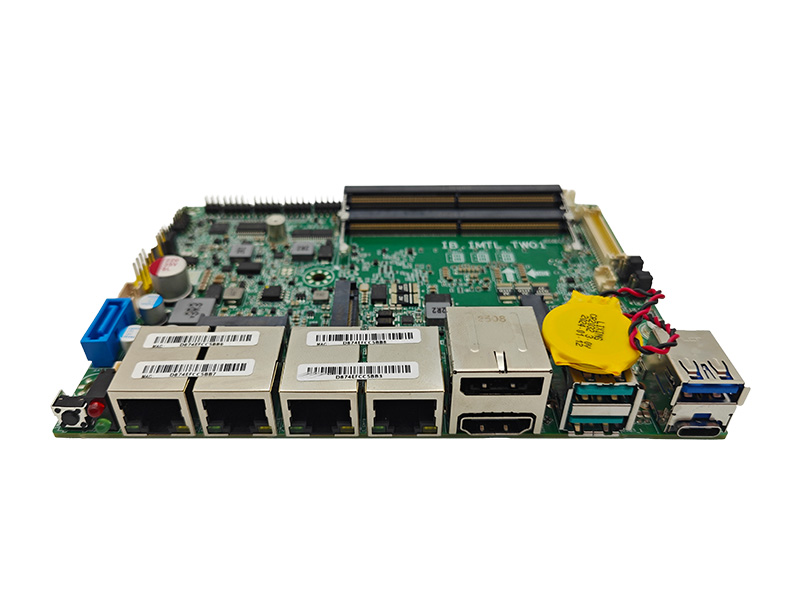

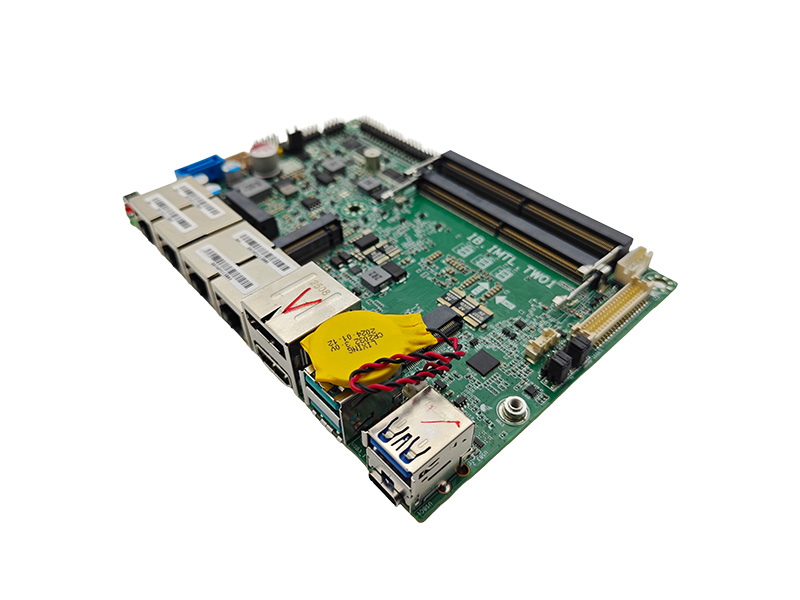

CIB-IMTL-TW01

• Intel® Core™ processor
• Ultra 5 processor 125U, 125H
• 2x DDR5 5600MHz Max to 96GB
• 1x HDMI, 1x DP++, 1x USB-C (DP)
• 4x RJ45, 4x COM, 1x SATA 3.0
• 4x USB 3.2 (Gen 2), 其中 1x USB-C
• 1x LVDS
• 1x 8-bit GPIO
• 1x OS Recovery
• 146 x 102mm

选择产品资料

下载
系统 System
处理器 Processor Intel® Core™ processor Ultra 5 processor 125U, 125H
内存 Memory 2x DDR5 5600 MHz SO-DIMM, Up to 96GB
BIOS AMI 256Mbit SPI Flash
图形 Graphic Intel® Integrated Graphics
操作系统 OS Win 10/11-64bit, Linux
看门狗定时器 Watchdog Timer System Reset, Programmable 255 levels timer interval, From 1~255 sec/min

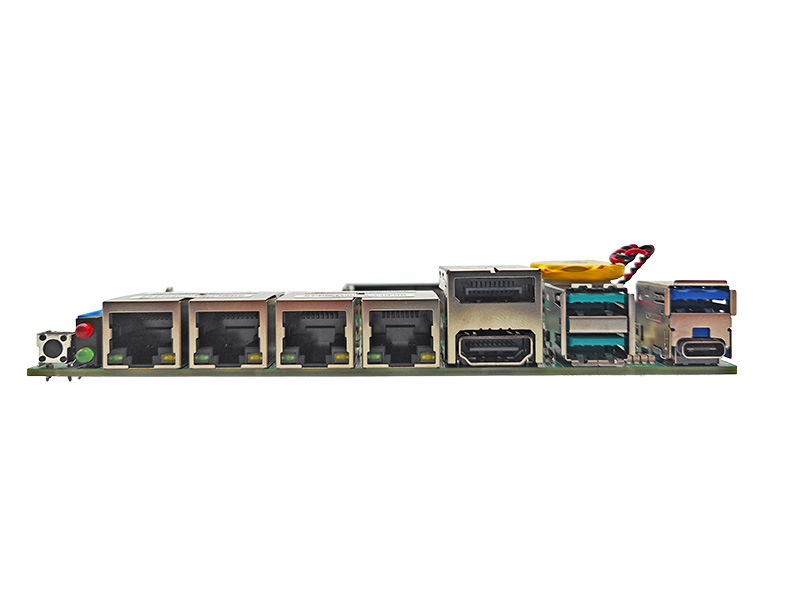

后部接口 External I/O
网口
Ethernet		 4x RJ45:
LAN1: Intel® I226-V GbE (10/100/1000 Mbps)
LAN2~4: Intel® I210-AT GbE (10/100/1000 Mbps)
显示
Display		 1x HDMI: Up to 4096 x 2304 @30Hz
1x DP++: Up to 4096 x 2304 @60Hz
1x USB-C  Support DP++, Up to 5120 x 3200 @60Hz
USB 3x USB3.2 (Gen2)
1x USB-C Supports USB 3.2 Gen2
指示灯
LED		 1x Power LED, 1x HDD LED
OS Recovery 1x OS Recovery Button

内部接口 Internal I/O
扩展接口 Expansion Slot 1x M.2 2280 M Key (SATA 3.0 or NVMe x4）
1x M.2 2230 E Key (PCIe x1+USB 2.0)
1x M.2 3052 B Key (PCIe x1+USB 2.0 or USB 3.1)
显示接口 Display 1x LVDS, Up to 1920 x 1200, co-lay eDPCOM
COM 1x COM (RS232/422/485 Default RS232)
3x COM (RS232)
COM 1&2 全信号, COM3&4 TX RX GND
USB 2x USB 2.0
SATA 1x SATA 3.0
GPIO 1x 8bit GPIO Default 4in/4out
Audio 1x Audio (Line-out&Mic-in )
SIM 1x Nano SIM
Fan 1x CPU Smart Fan
Front Panel Front Panel
TPM On board TPM 芯片/fTPM2.0
UPS 1x UPS 外接模块（可选）

电源 Power
电源输入
Power Input

12~24V DC

环境 Environmental
操作温度
Operating Temp.		 0℃ ~ 60℃
存储温度
Storage Temp.		 -40℃ ~ 85℃
操作湿度
Operating Relative Humidity		 60℃ 95%RH
存储湿度
Storage elative Humidity		 60℃ 95%RH, Non-condensing
随机振动
Random Vibration		 5~500Hz, 3.5Grms operation
正弦振动
Sine Vibration		 5~500Hz, 2G Non-operation
机械冲击 Shock Operation: 10G@11ms; Non-operation: 20G@11ms

机构 Mechanical
尺寸 Dimension 146 x 102 mm, 3.5 英寸


认证 Certification
安规认证 Safety Certification 可搭配整机进行 CCC, CE, FCC, RoHS 等相关认证

销售型号 Sales Model
销售型号 Sales Model CIB-I25U-TW01
CIB-I25H-TW01
