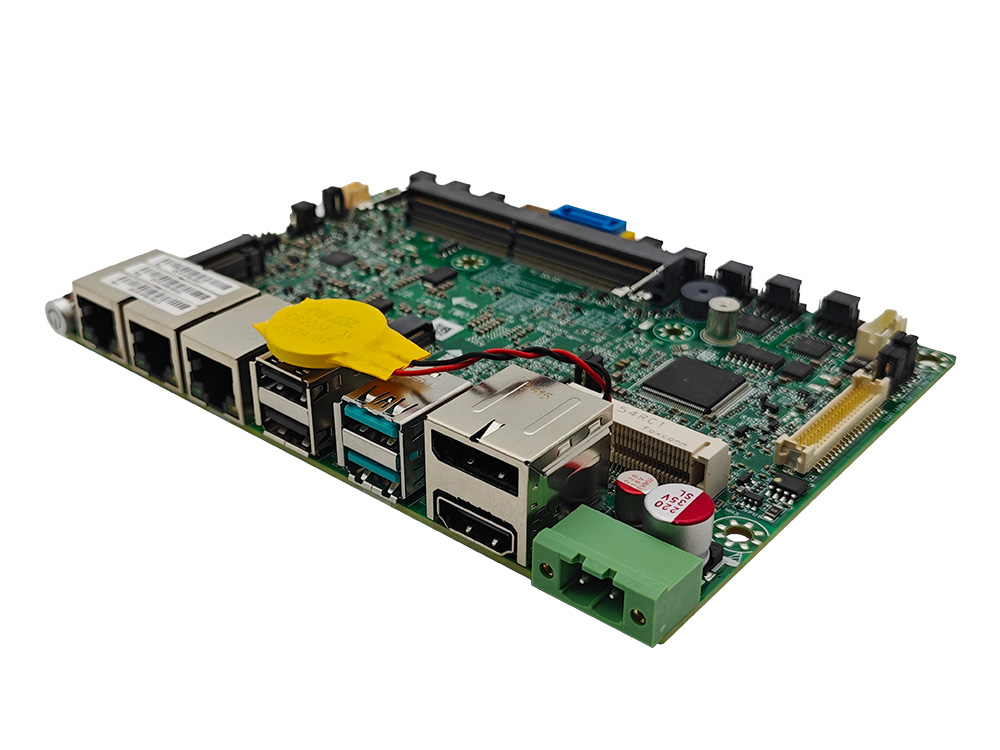

CIB-IADN-TW01

• Intel® Core™ N97 processor 2.0 GHz
• Up to 3.6GHz, TDP 12W
• 1x DDR4, Up to 16GB
• 1x HDMI, 1x DP++
• 3x RJ45, 6x COM, 1x SATA 3.0
• 2x USB 3.2 (Gen 2), 4x USB 2.0
• 1x 8-bit Programmable GPIO
• 1x OS Recovery
• 146 x 102mm

选择产品资料

下载

系统 System
Processor

Intel® Core™ N97 processor 2.0 GHz, up to 3.6GHz, TDP 12W
Memory 1x DDR4 3200MHz SO-DIMM, Up to 16GB
BIOS

AMI UEFI BIOS
Graphics Intel® UHD graphics integrated
OS Windows10/11, Linux

Watchdog Timer

 System reset, programmable 255 levels timer interval, from 1~255 sec/min

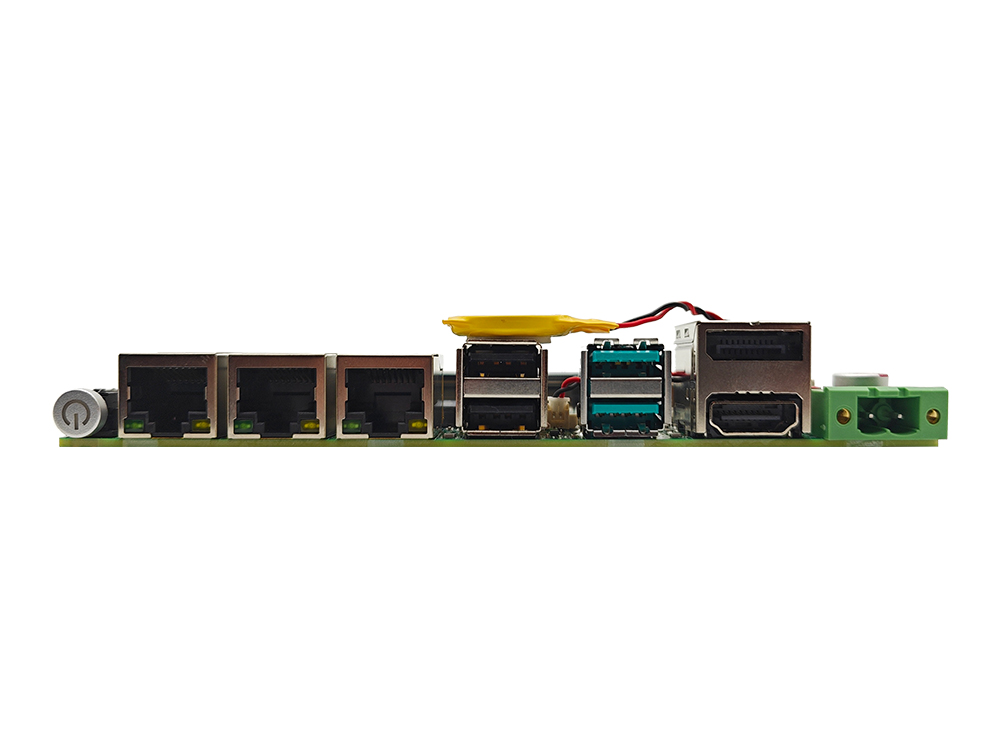

后部接口 Rear I/O

网口 Ethernet

3x RJ45：
LAN 1&2: Intel® I210-AT GbE (10/100/1000 Mbps)
LAN 3: Intel® I226-V GbE (10/100/1000 Mbps)
显示 Display 1x HDMI: resolution to 4096 x 2160@30Hz
1x DP++: resolution up to 4096x2160@60Hz
USB 2x USB 3.2 (Gen 2)
2x USB 2.0
LED 1x HDD LED
Botton 1x Power Button with LED
OS Recovery 1x OS Recovery button

内部接口 Internal I/O

扩展接口 Expansion Slot

1x Full-size Mini-PCIe  (USB 3.0/PCIe x1 & USB 2.0)
1x M.2 2280 M Key for SSD (SATA  3.0）
1x M.2 2230 E Key for Wi-Fi  (PCIe x1+USB 2.0)
显示接口 Display 1x LVDS, dual channel 18/24bit, resolution up to 1920x1200@60Hz
1x eDP 1.3, resolution up to 4096x2160@60Hz (co-lay with LVDS)
COM 2x COM（RS232/485 Default RS232, 隔离等级: 3KV）
2x COM RS232
2x TTL (2*5Pin 预留)
CAN /
USB 2x USB 2.0
SATA 1x SATA 3.0
GPIO 1 x 8bit  GPIO Default 4in/4out(2*5pin)
Audio 1x Audio (Line-out & Mic-in 2*5pin)
SIM 1x Standred SIM
Fan 1x CPU Smart Fan (1*4pin)
Front Panel 1x Front panel wafer (2*5pin)(Power LED, HDD LED, Power Button, Reset Button)
Security Support intel PTT
eSPI /
UPS 1x 8PIN (外接 UPS 模块)
电源 Power

电源输入 Power Input

12V~24V

环境 Environmental

操作温度 Operating Temp.

0℃ ~ 60℃

存储温度 Storage Temp.

 -40℃ ~ 85℃
操作湿度 Operating Relative Humidity 60℃ 95%RH
存储湿度 Storage elative Humidity 60℃ 95%RH, Non-condensing
随机振动 Random Vibration

5~500Hz, 3.5Grms operation
正弦振动 Sine Vibration

5~500Hz, 2G Non-operation
机械冲击 Shock

Operation: 10G@11ms; Non-operation: 20G@11ms
机构 Mechanical

尺寸 Dimension

146 x 102 mm, 3.5 英寸
认证 Certification

安规认证 Safety Certification

 可搭配整机进行 CCC, CE, FCC, RoHS 等相关认证
销售型号 Sales Model
销售型号 Sales Model CIB-IN97-TW01
