工业计算机
Industrial PC

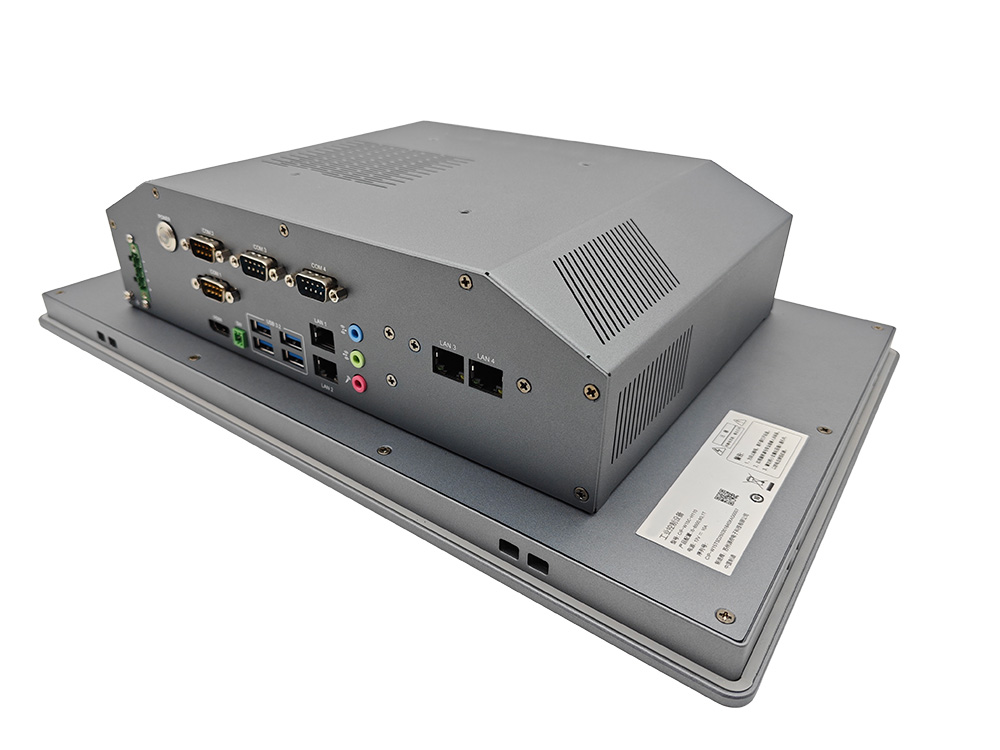

CIP-W15T-H110
• 一款全平面工业等级平板电脑
• 采用 15.6 英寸 TFT LCD 搭配五线式电阻触摸屏/十点投射式电容触摸屏
• Intel® 6th/7th/8th/9th Generation Core™ /Pentium®/Celeron® CPU
• DC 12V 电压输入，Intel® 双千兆网口

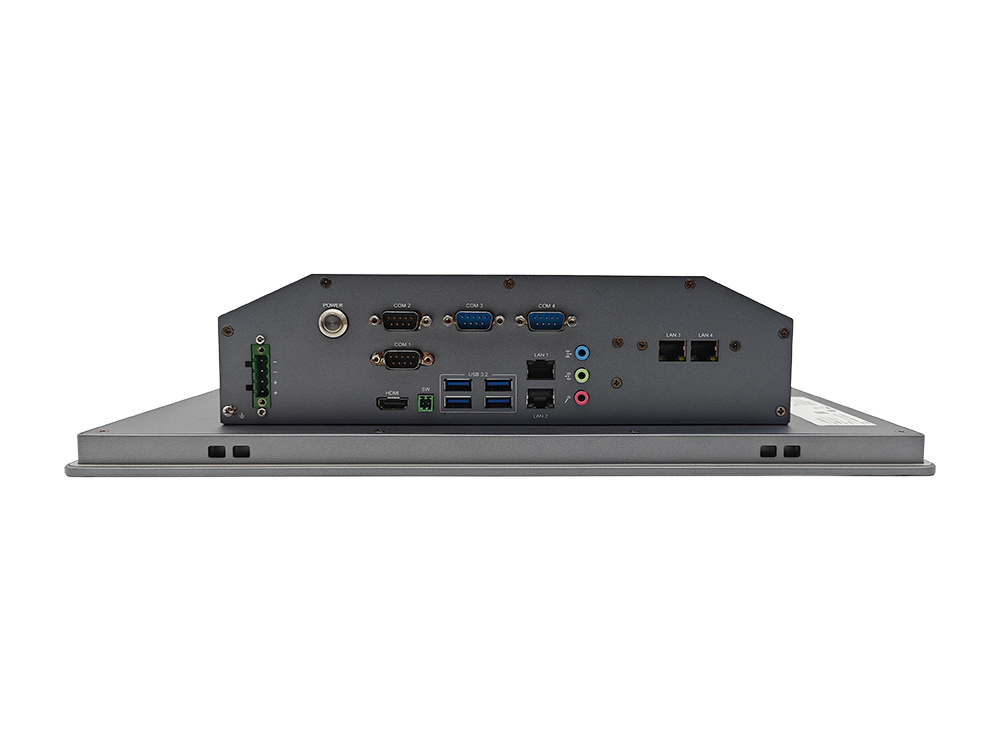

• 4x COM，4x USB 3.2，1x HDMI
• 前面板支持 IP65 防护等级，可更好适应不同的使用现场要求
选择产品资料
| 系统 System | |
| 处理器 Processor |
Intel® 6th/7th/8th/9th Generation Core™ /Pentium®/Celeron® CPU 35W |
| 芯片组 Chipset |
Intel® H110 Chipset |
| 内存 Memory |
1x DDR4 SO-DIMM 2666MHz, Max to 32 GB |
| BIOS | AMI 128Mbit SPI Flash |
| 操作系统 OS | Windows 10 64bit; Linux |
|
看门狗定时器 Watchdog Timer |
System reset，programmable 255 levels timer interval, from 1~255 sec/min |
| 外部接口 Enternal I/O | |
|
网口 Ethernet |
1x Intel® I219-V GbE (10/100/1000 Mbps) |
| 显示 Display | 1x HDMI: max resolution up to 4096 x 2160@24Hz |
| 音频 Audio | 1x Audio（Line-out & Mic-in 2 in 1） |
| COM | 2x COM (RS232/422/485 auto-flow) 2x COM (RS232) |
| USB |
4x USB 3.2 |
| 远程开关 Remote SW | 1x Remote ON-OFF |
| 电源输入 Power input |
1x Phinex 4Pin |
| 电源开关 Power botton | 1x Power button |
| 内部接口 Internal I/O | |
|
Expansion slot |
1x Full-Size Mini-PCIe Slot (与 M.2 2280 SSD 互斥) 1x M.2 2280 /2242 SSD Slot (SATA 3.0) |
| SATA |
1x SATA and SATA Power |
| 触摸屏 Touch Panel | |
| Touch Screen |
全平面五线电阻屏 5-Wire Resistive Touch 全平面十点投射式电容屏 P-cap Multi-Touch |
|
Touch |
35,000,000 times |
| 显示屏 Display Screen | |
| Size |
15.6" |
| Resolution |
1920（H） x 1080（V） |
| Ratio | 16:9 |
| Brightness | 250 nits |
| Contrast Ratio | 3000:1 |
| Backlight Lifetime |
15000Hrs |
| 电源 Power | |
|
电源输入 Power Input |
12V DC in |
| 机构 Mechanical | |
| Front | 铝，背部带有缓冲胶条 |
| Cooler | 铝 |
| Board | 铁 SECC |
| Mounting | Panel Mount and VESA-mount (75 x 75mm) |
| Dimension | 402.5 x 252.6 x 92.4mm |
| Suggestion Cut Size | 393.8 x 243.9mm |
| Weight | 5.24KG |
| 环境 Environmental | |
|
操作温度 OperatingTemp. |
-10℃ ~ 45℃ |
|
Storage Temp. |
-40℃ ~ 60℃ |
|
Operating Relative Humidity |
45℃ 95%RH |
|
Storage Elative Humidity |
60℃ 95%RH, Non-condensing |
|
Random Vibration |
5~500Hz, 2Grms（SSD）operation，5~500Hz, 1Grms（HDD）operation, |
|
Sine Vibration |
5~500Hz, 2G Non-operation |
|
Shock |
Operation: 10G@11ms ； Non-operation: 20G@11ms |
|
Front Panel Protection |
IP65 |
| 销售型号 Sales Model | |
| Sales Model | CIP-W15C-H110 CIP-W15R-H110 |
